DP 4U rackmount tower workstation for rendering, CAD and content creation

Pretul afisat contine TVA (21%).

SuperServer SYS-740A-T

DP 4U rackmount tower workstation for rendering, CAD and content creation

Key Features

  1. 3rd Gen Intel® Xeon® Scalable processor support
  2. Intel® C621A Chipset
  3. 5 PCIe 4.0 x16, 1 PCIe 4.0 x8, 2 NVMe M.2 slots
  4. 3x 5.25″ peripheral drive baysup to 4x NVMe SSD support with optional cables8x 3.5/2.5″ hot-swap SATA (default) drive bays (SAS support requires optional add-on card )
  5. 3x 5.25″ peripheral drive bays
  6. up to 4x NVMe SSD support with optional cables
  7. 8x 3.5/2.5″ hot-swap SATA (default) drive bays (SAS support requires optional add-on card )
  8. Dual 1200W Titanium level power supplies for high powered configurations
  9. Supports up to two double width active GPUs1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 1 USB 3.2 Gen2 (Rear), 7.1 HD Audio
  10. Supports up to two double width active GPUs
  11. 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 1 USB 3.2 Gen2 (Rear), 7.1 HD Audio

Specifications

  • SuperWorkstation SYS-740A-T
Motherboard

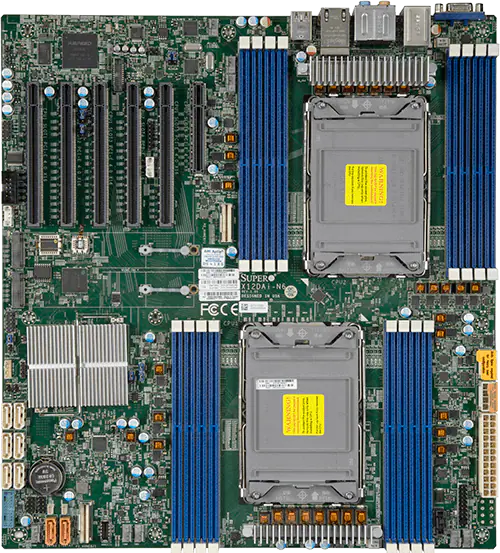

  • Super X12DAI-N6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Single-Root

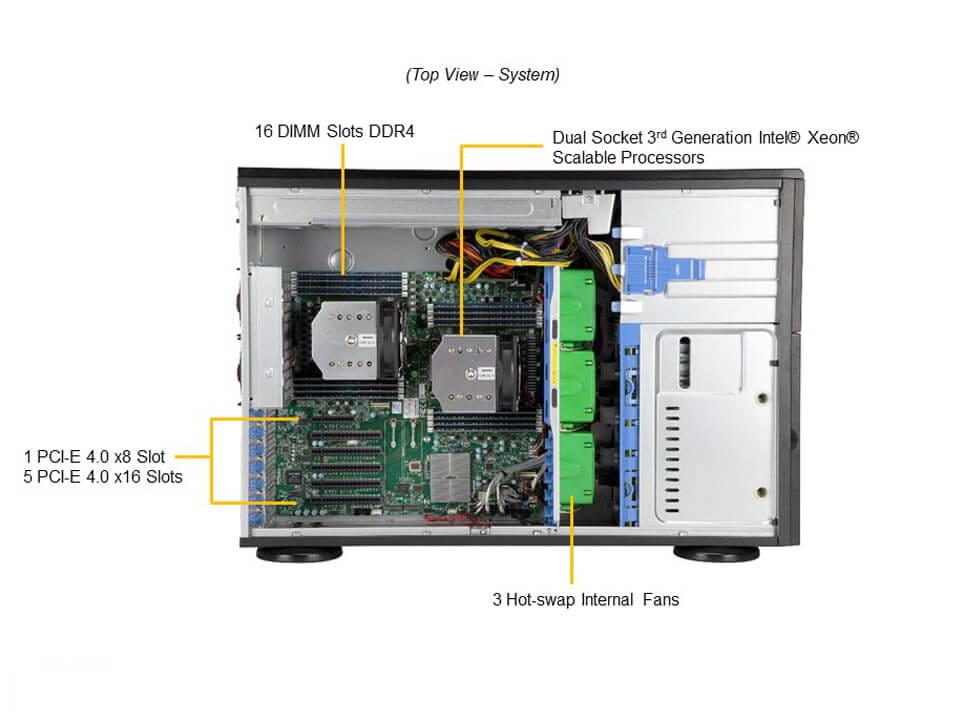

System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 1GbE

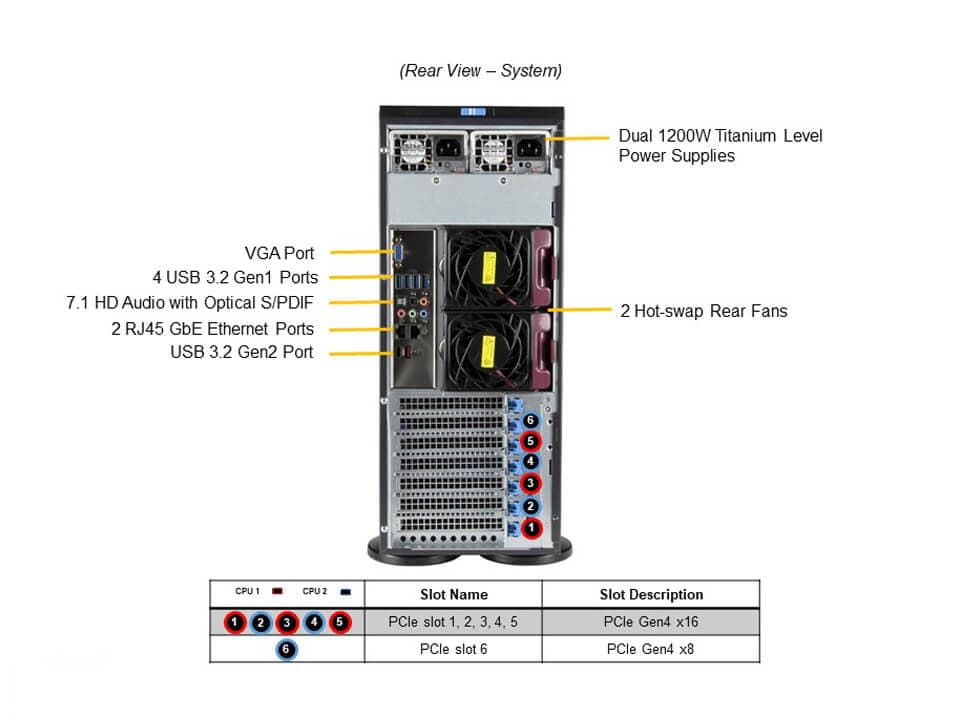

Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports (IPMI shared on LAN port 1)
USB
  • 4 USB 3.2 Gen1 ports(rear)
  • 2 USB 3.2 Gen1 ports(front)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
Audio
  • 7.1 HD Audio
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperWorkstation SYS-740A-T
  • Super X12DAI-N6
Chassis
Form Factor
  • 4U Tower Rackmount
Model
  • CSE-745BTS-R1K23BP3

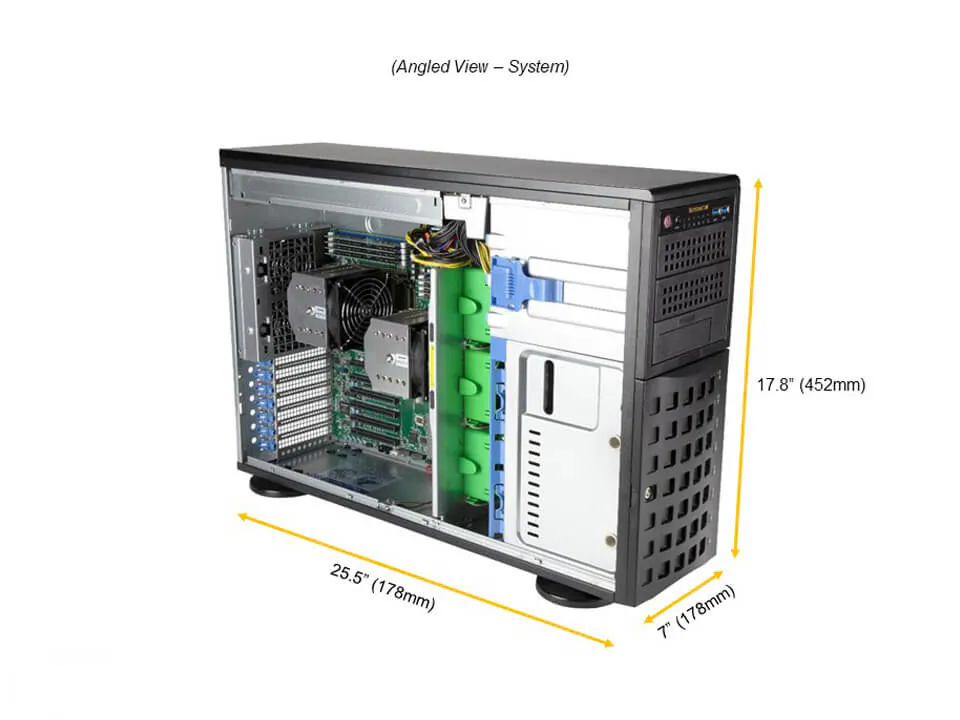

Dimensions and Weight
Height
  • 17.8″ (452 mm)
Width
  • 7″ (178 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 59 lbs (26.76 kg)
Available Color
  • black
Front Panel
Buttons
  • Power On/Off button
  • Reset button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot
  • 5 PCIe 4.0 x16 FHFL slots
  • 1 PCIe 4.0 x8 FHHL slot

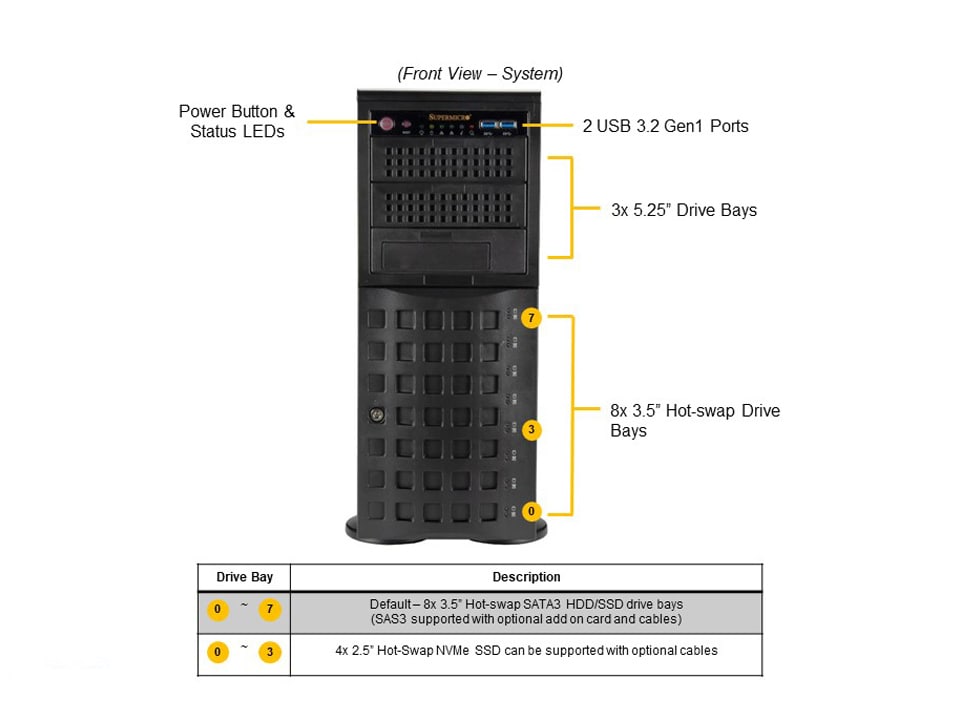

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays4 front hot-swap 3.5″ SAS*/SATA drive bays 4 front hot-swap 3.5″ NVMe*/SATA drive bays
  • 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ NVMe*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
Peripheral Bays
  • 3 5.25″ peripheral bays (optional)
System Cooling
Fans
  • Up to 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
