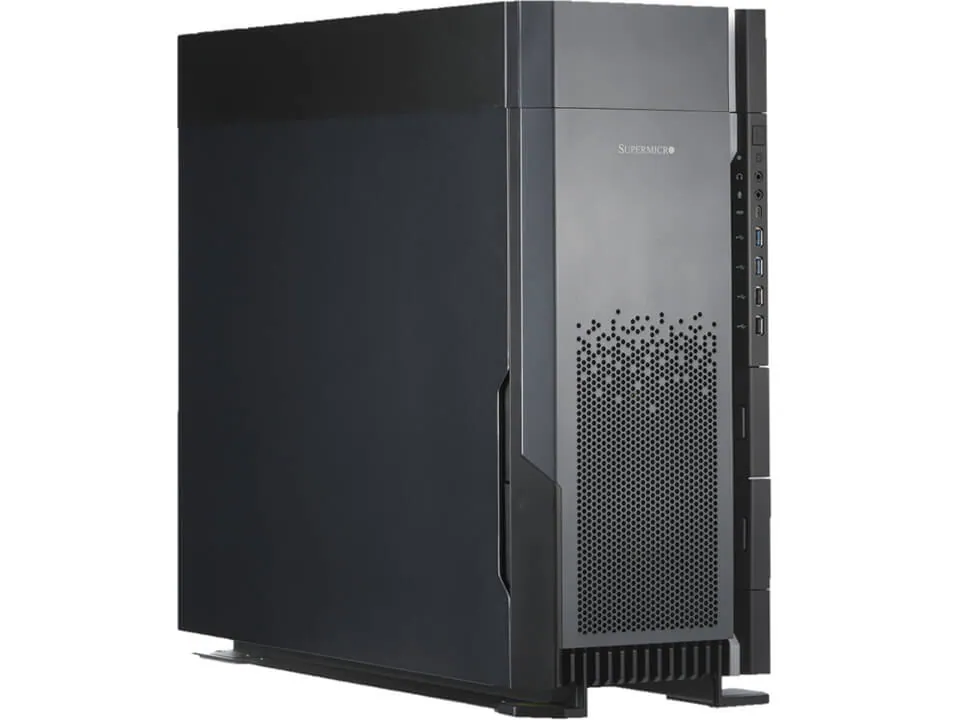

Supermicro SuperServer SYS-751A-I
Supermicro SuperServer SYS-751A-I - imagine 2
Supermicro SuperServer SYS-751A-I - imagine 3
Supermicro SuperServer SYS-751A-I - imagine 4
Supermicro SuperServer SYS-751A-I - imagine 5
Supermicro SuperServer SYS-751A-I - imagine 6
, , ,

Supermicro SuperServer SYS-751A-I

Favorite
Compara

DP full rackmount tower workstation for 3D design and content creation

Pretul afisat contine TVA (21%).

SuperServer SYS-751A-I

DP full rackmount tower workstation for 3D design and content creation

Key Features

  1. 5th/4th Gen Intel® Xeon® Scalable processor support
  2. Intel® C741 ChipsetTPM 2.0 built-in already
  3. Intel® C741 Chipset
  4. TPM 2.0 built-in already
  5. 5 PCIe 5.0 x16, 1 PCIe 5.0 x8, 2 NVMe M.2 slots
  6. 4x internal 3.5″ SATA rotating drive bays for easy access2x 5.25″ peripheral drive baysup to 4x NVMe SSD support with opitonal cables and converter trays2x 2.5″ Front access SATA drive bays
  7. 4x internal 3.5″ SATA rotating drive bays for easy access
  8. 2x 5.25″ peripheral drive bays
  9. up to 4x NVMe SSD support with opitonal cables and converter trays
  10. 2x 2.5″ Front access SATA drive bays
  11. New front bezel with keylock for added security
  12. Supports up to two double width active GPUs1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 2 USB 3.2 Gen2 (1 ineternal, 1 Front type C), 2 USB 2.0, 7.1 HD Audio
  13. Supports up to two double width active GPUs
  14. 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 2 USB 3.2 Gen2 (1 ineternal, 1 Front type C), 2 USB 2.0, 7.1 HD Audio

Specifications

Product SKUs
  • SuperWorkstation SYS-751A-I

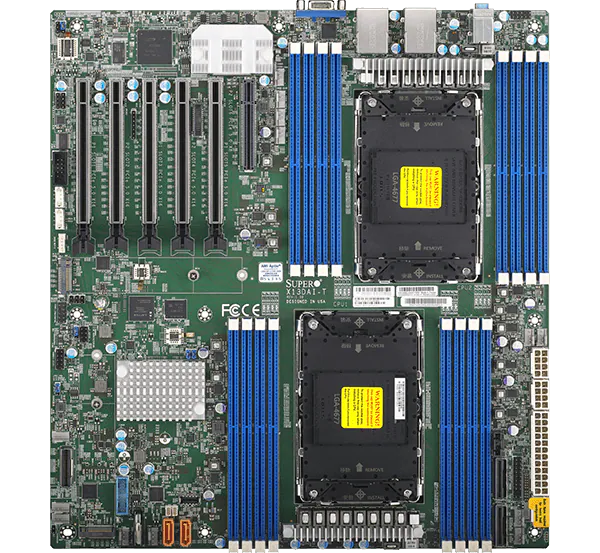

Motherboard
  • Super X13DAI-T
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 10GbE

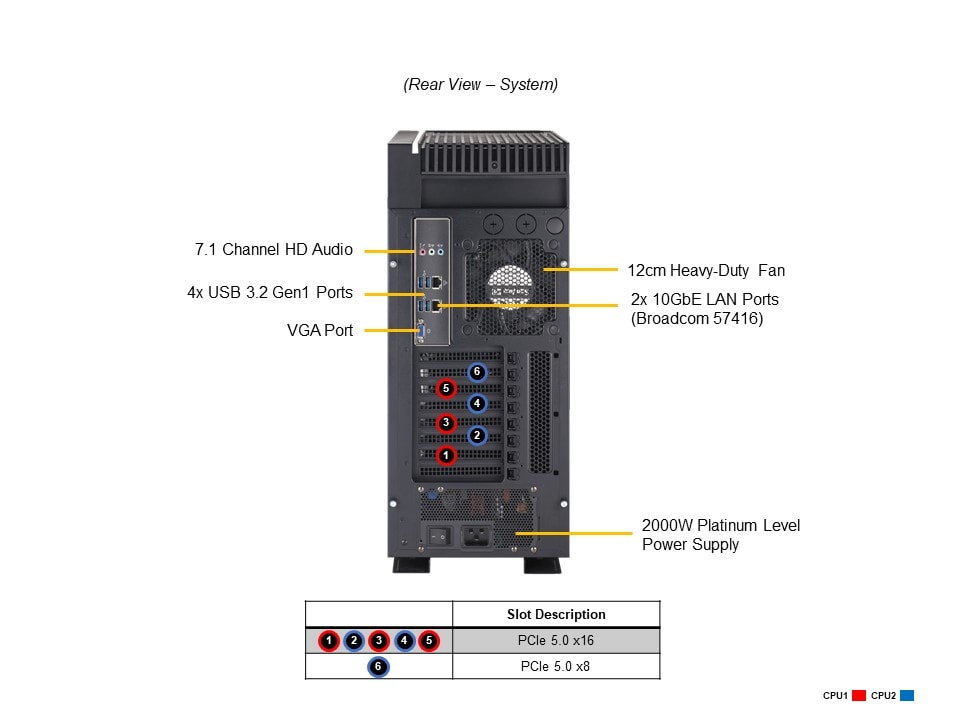

Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 Type-A ports(front)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 1 USB 3.2 Gen2 Type-C port(Front)
  • 1 USB 3.2 Gen2 Type-A port(Header)
  • 4 USB 3.2 Gen1 Type-A ports(Rear)
Video
  • 1 VGA port
DOM
  • 2 SATA DOM (Disk on Module) ports
Audio
  • 7.1 HD Audio
  • Line Out
  • Mic in
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperWorkstation SYS-751A-I
  • Super X13DAI-T
Chassis
Form Factor
  • Tower or 5U Rackmount
Model
  • CSE-GS7A-000NBP3

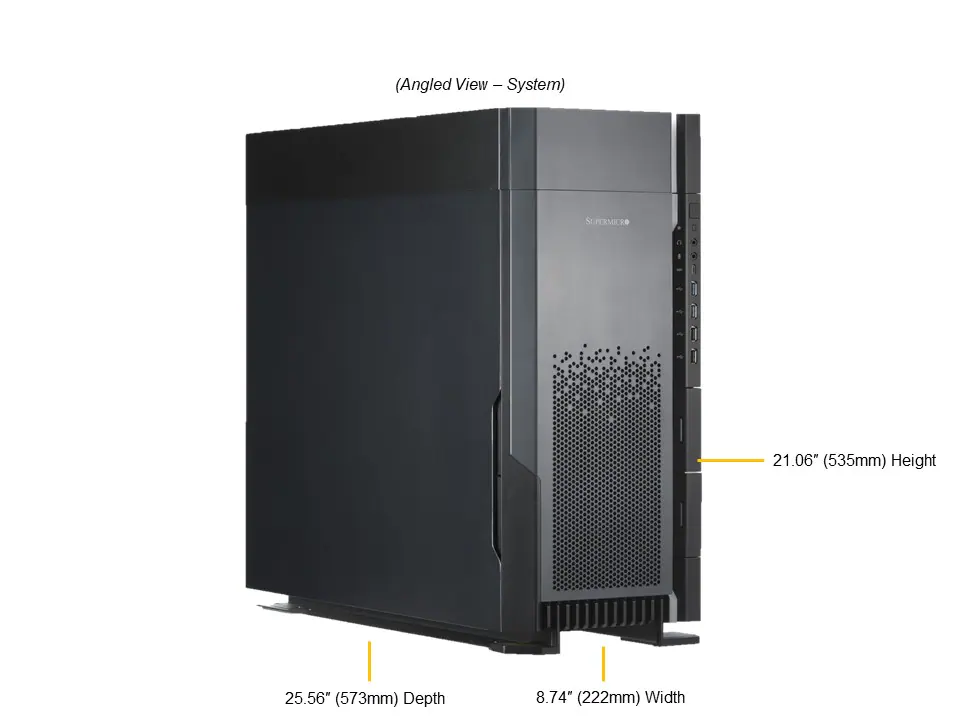

Dimensions and Weight
Height
  • 21.1″ (536 mm)
Width
  • 8.7″ (221 mm)
Depth
  • 22.6″ (574 mm)
Package
  • 27.6″ (H) x 14.6″ (W) x 28″ (D)
Weight
  • Gross Weight: 59.5 lbs (27 kg)
  • Net Weight: 56.2 lbs (25.5 kg)
Available Color
  • Black

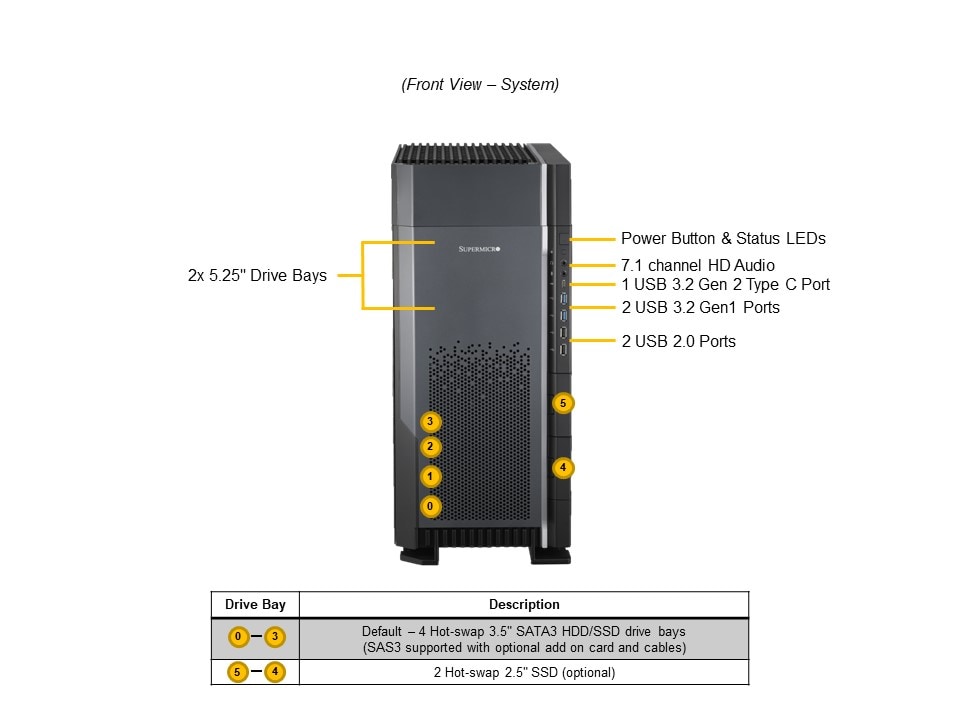

Front Panel
Buttons
  • LED On/Off Button
  • Power On/Off button
LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default5 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 FHHL slot
  • 5 PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x8 FHHL slot
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 front fixed 3.5″ NVMe/SAS*/SATA drive bays
  • 4 front fixed 3.5″ NVMe/SAS*/SATA drive bays
  • Option A: Total 6 bays4 internal fixed 3.5″ NVMe/SATA drive bays 2 front fixed 2.5″ SATA drive bays
  • 4 internal fixed 3.5″ NVMe/SATA drive bays
  • 2 front fixed 2.5″ SATA drive bays
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 5.25″ bays (optional)

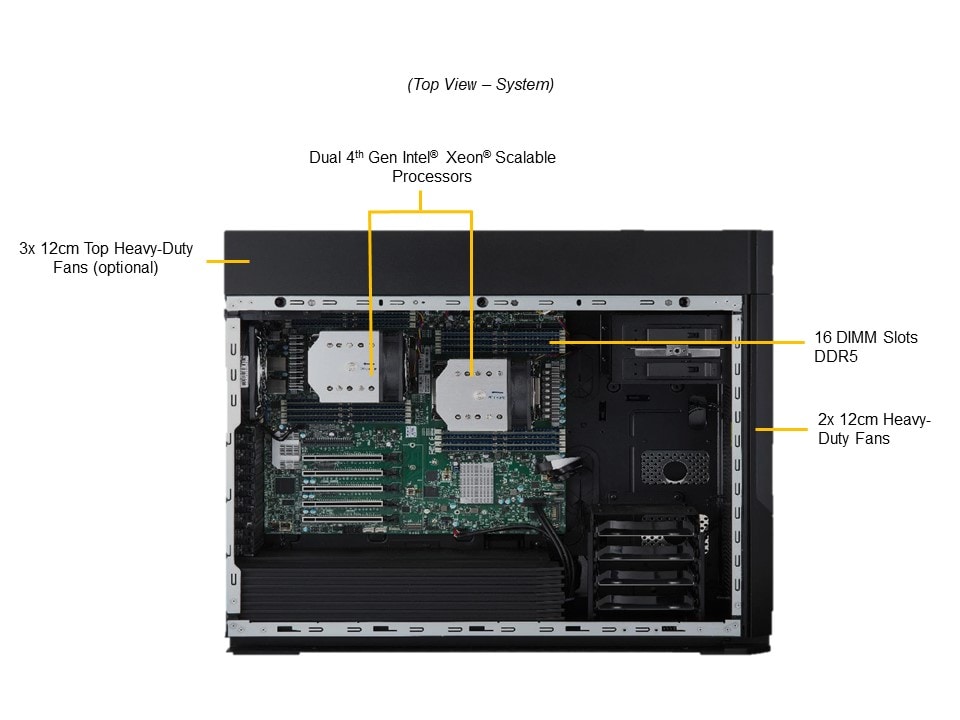

System Cooling
Fans
  • Up to 3x 12cm Fan(s)
Power Supply
  • 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX
Dimension (WxHxL)
  • 150 x 86 x 200 mm
Input
  • 100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX
Optional Parts List
