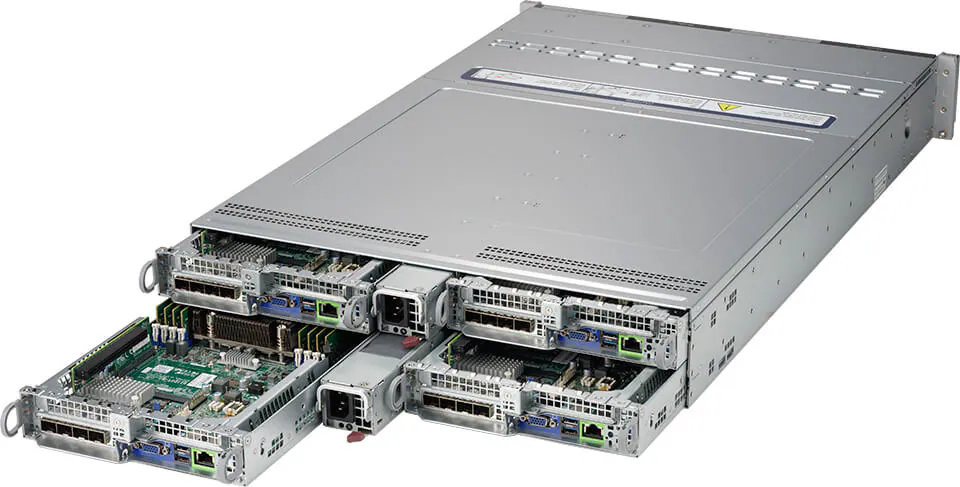

2U BigTwin with 6 2.5″ SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer AS -2124BT-HTR

2U BigTwin with 6 2.5″ SATA drives per node

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  2. Dual AMD EPYC™ 7003/7002 Series Processors
  3. (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  4. Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 16 DIMM slots
  5. 2 PCIe4.0 x16 (LP) slot;1 SIOM card support(flexible networking)Note: must bundle with Network card
  6. 2 PCIe4.0 x16 (LP) slot;
  7. 1 SIOM card support
  8. (flexible networking)
  9. Note: must bundle with Network card
  10. Integrated IPMI 2.0 + KVM with dedicated LAN• Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  11. Integrated IPMI 2.0 + KVM with dedicated LAN
  12. • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  13. 6 Hot-swap 2.5″ SATA3 drive baysM.2 Interface: 1 PCIe 3.0 x4 NVMe/SATAM.2 Form Factor: 2280, 22110M.2 Key: M-key
  14. 6 Hot-swap 2.5″ SATA3 drive bays
  15. M.2 Interface: 1 PCIe 3.0 x4 NVMe/SATA
  16. M.2 Form Factor: 2280, 22110
  17. M.2 Key: M-key

Specifications

Product SKUs
  • A+ Server AS -2124BT-HTR
Motherboard

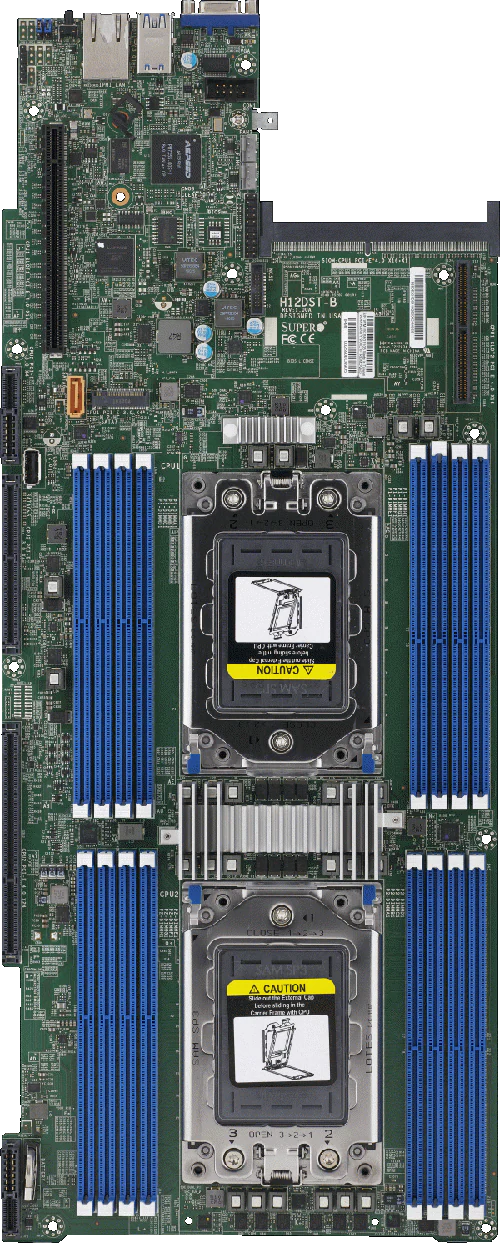

  • Super H12DST-B

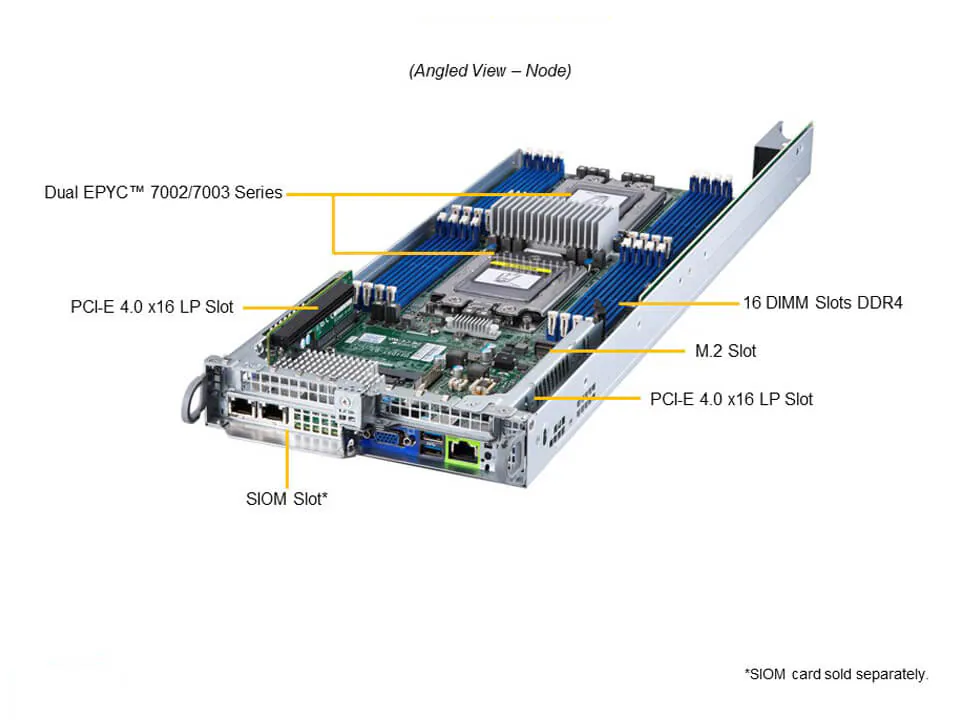

Processor (per Node)
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 200W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • Ethernet
  • InfiniBand
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)

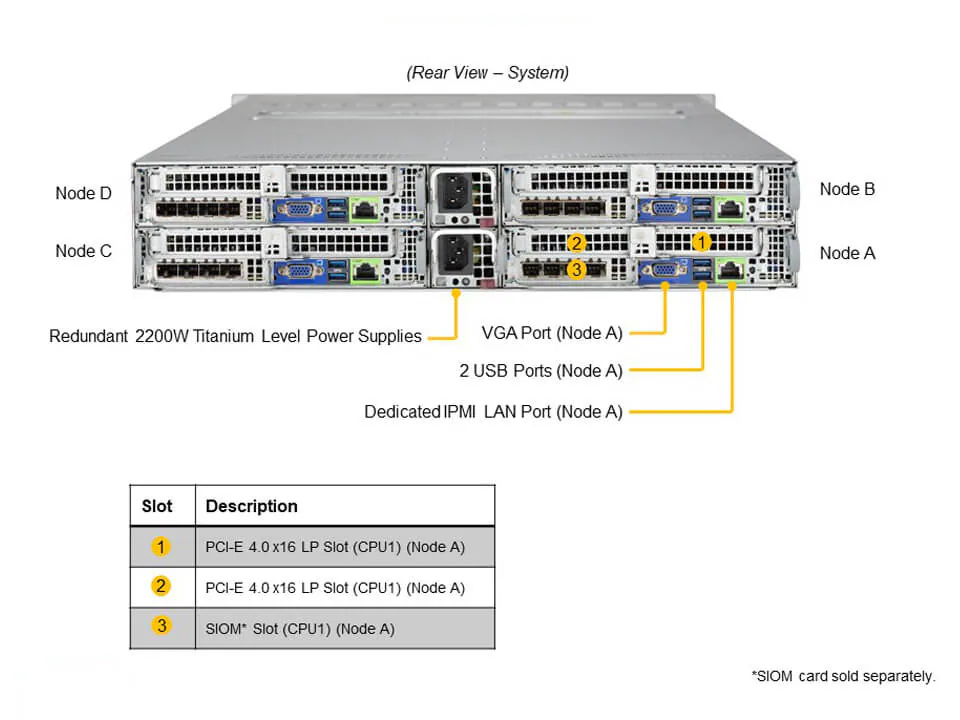

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
  • A+ Server AS -2124BT-HTR
  • Super H12DST-B
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP2
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.68″ (449 mm)
Depth
  • 28.75″ (730 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 96.6 lbs (43.8 kg)
  • Net Weight: 66.1 lbs (30 kg)
Available Color
  • Black front & silver body
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 LP slots
  • 2 PCIe 4.0 x16 LP slots
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
Drive Bays / Storage (per Node)
Drive Bays Configuration

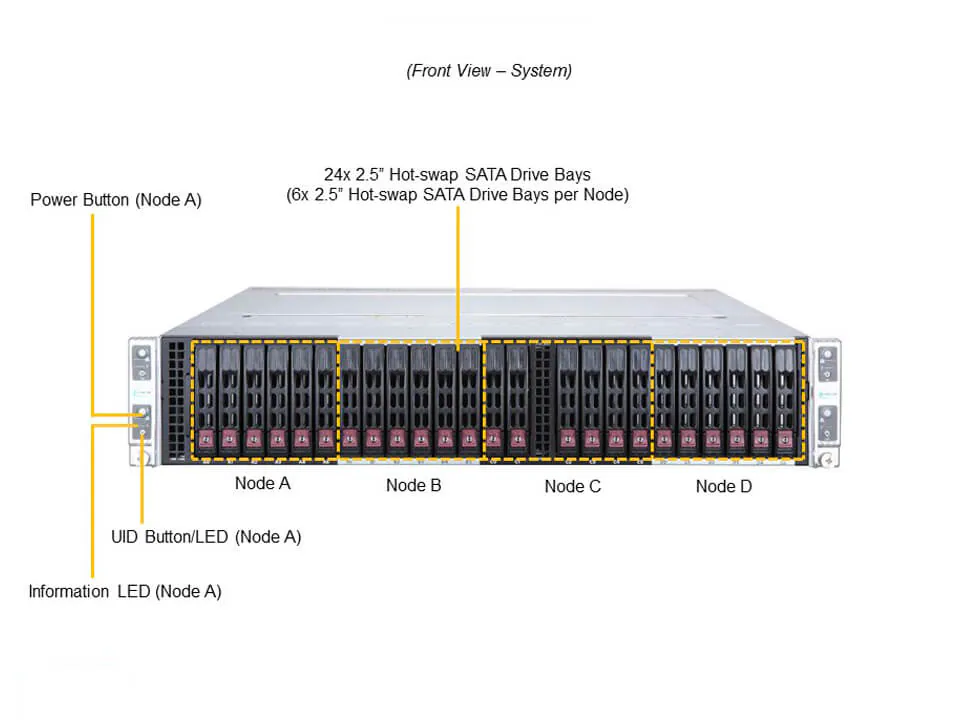

  • Default: Total 6 bays6 front hot-swap 2.5″ SATA drive bays
  • 6 front hot-swap 2.5″ SATA drive bays
System Cooling
Fans
  • Up to 4 Heavy-duty PWM 8cm Fan(s)
Power Supply

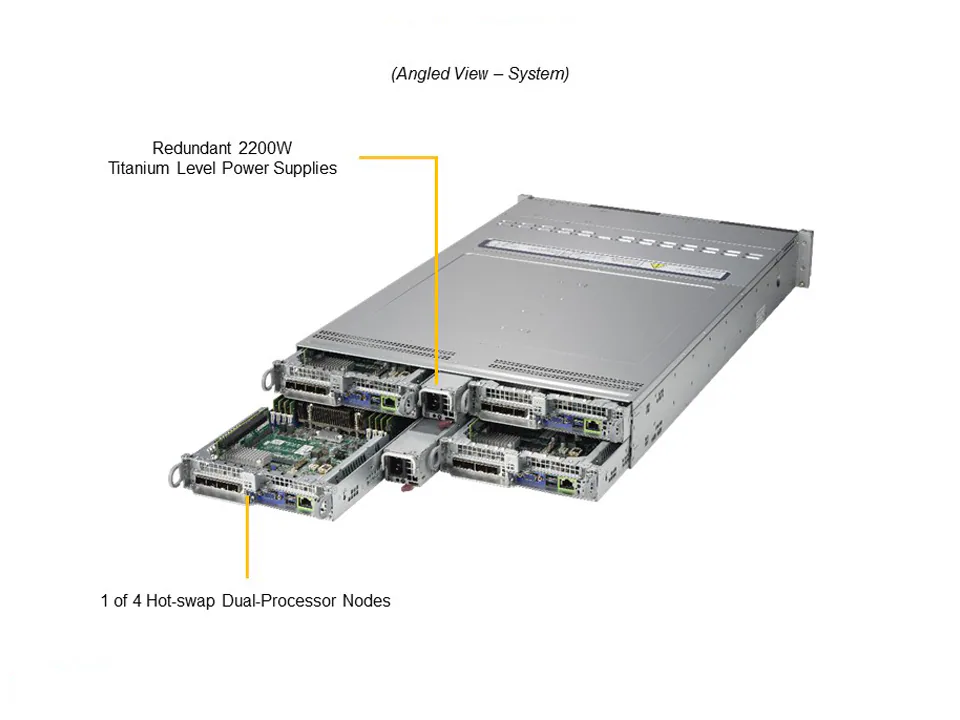

  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CCC only Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only) +12VMax: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (connector)
Dimension (WxHxL)
  • 45 x 40 x 480 mm
Total Output Power
  • for CCC only
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (connector)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 30°C (50°F to 86°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Total Output Powerfor CCC only Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1800W: 200-220Vdc / 50-60Hz (for CQC only)1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 1980W: 220-230Vdc / 50-60Hz (for CQC only)2090W: 230-240Vac 2090W: 230-240Vdc (for CCC only)2090W: 180-220Vac (for UL/cUL only)2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac (for UL/cUL only) +12VMax: 100A / Min: 0A (100-127Vac)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 150A / Min: 0A (200Vdc-220Vdc) (for CQC only)Max: 165A / Min: 0A (220-230Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 165A / Min: 0A (220Vdc-230Vdc) (for CQC only)Max: 174.17A / Min: 0A (230-240Vac)Max: 174.17A / Min: 0A (230-240Vdc, CCC only)Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (For CQC only)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only)Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) (for UL/cUL only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (connector)
