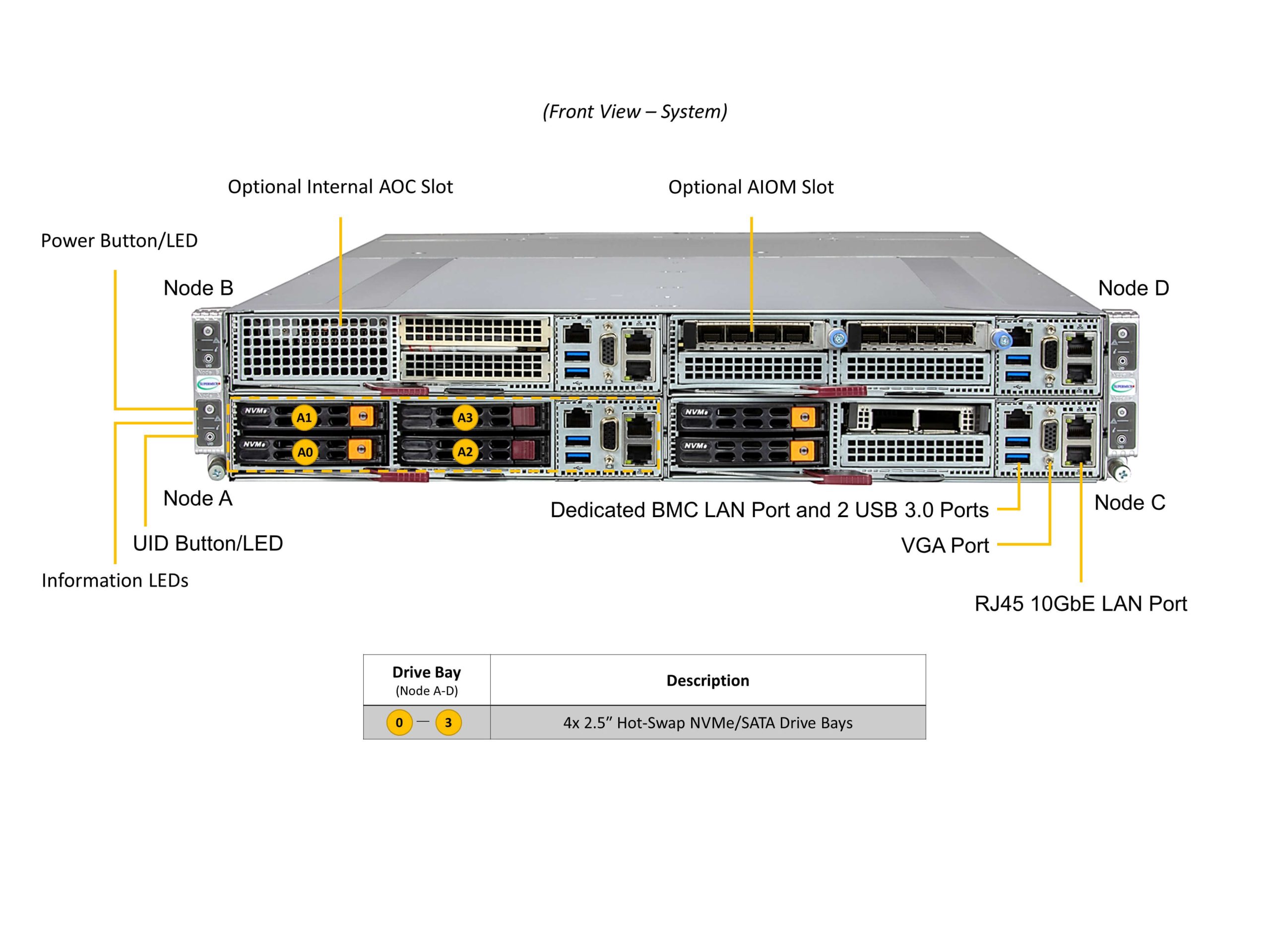

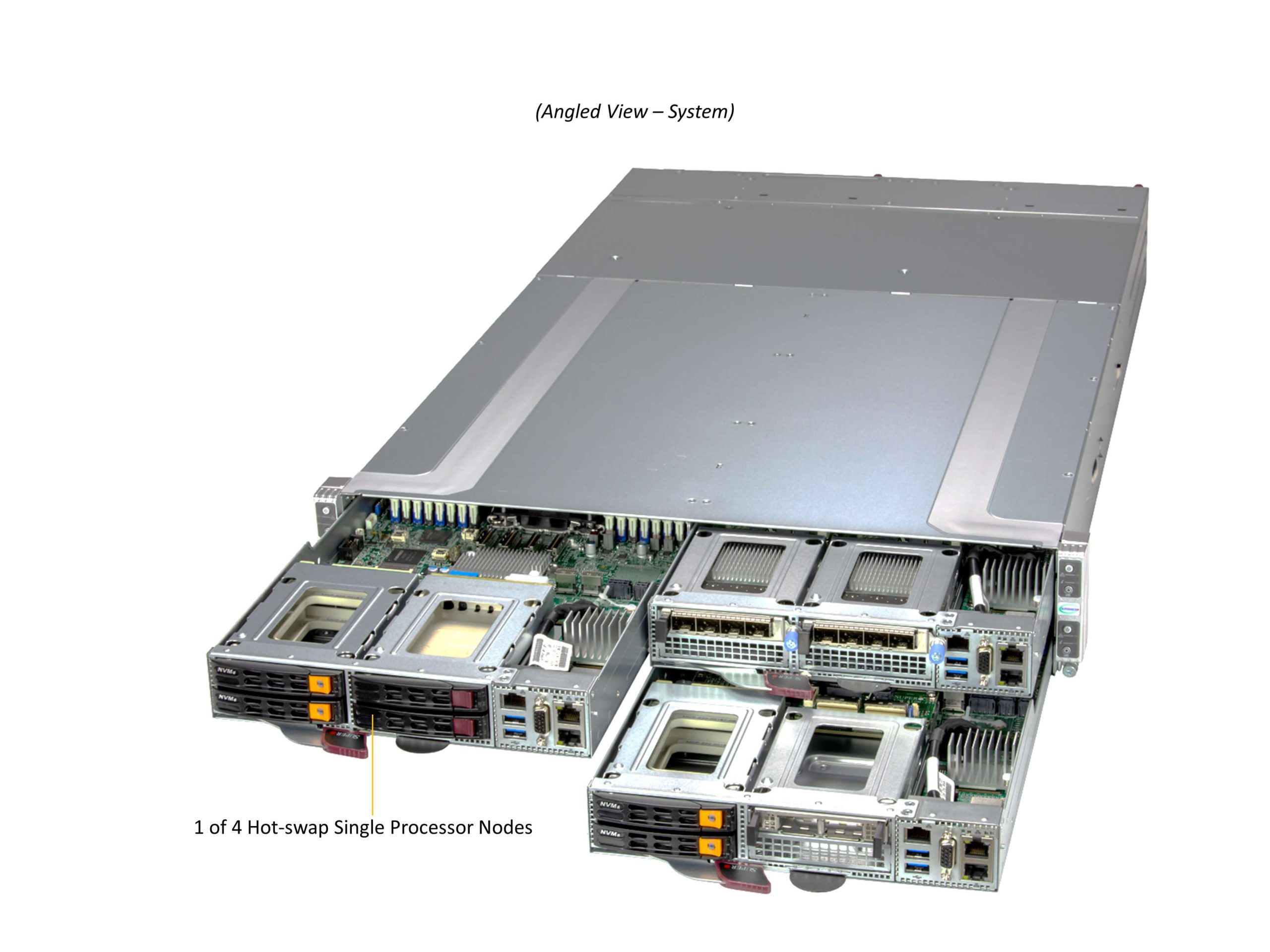

2U 4-Node GrandTwin with up to 4 hot-swap 2.5″ NVMe/SATA drives per node and front I/O

Pretul afisat contine TVA (21%).

SuperServer SYS-211GT-HNTF

2U 4-Node GrandTwin with up to 4 hot-swap 2.5″ NVMe/SATA drives per node and front I/O

Key Features

  1. Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 350W TDP
  2. Intel® C741

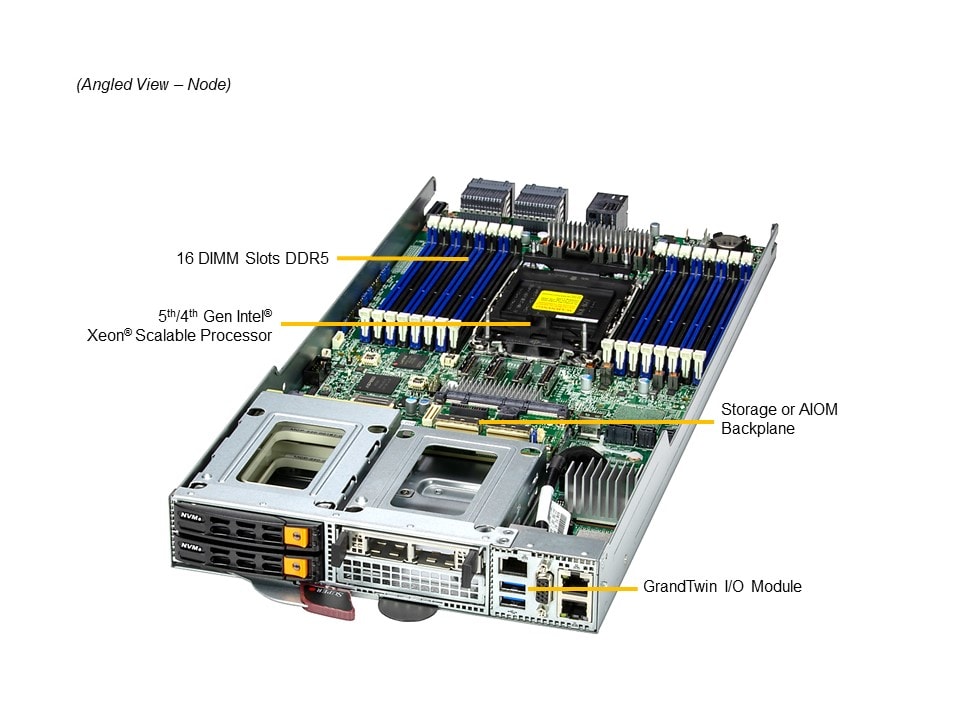

  3. 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  4. Optional AIOM module or internal PCIe 5.0 x16
  5. Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
  6. Two optional storage modules. Each module supports 2x NVMe or SATA drive bays

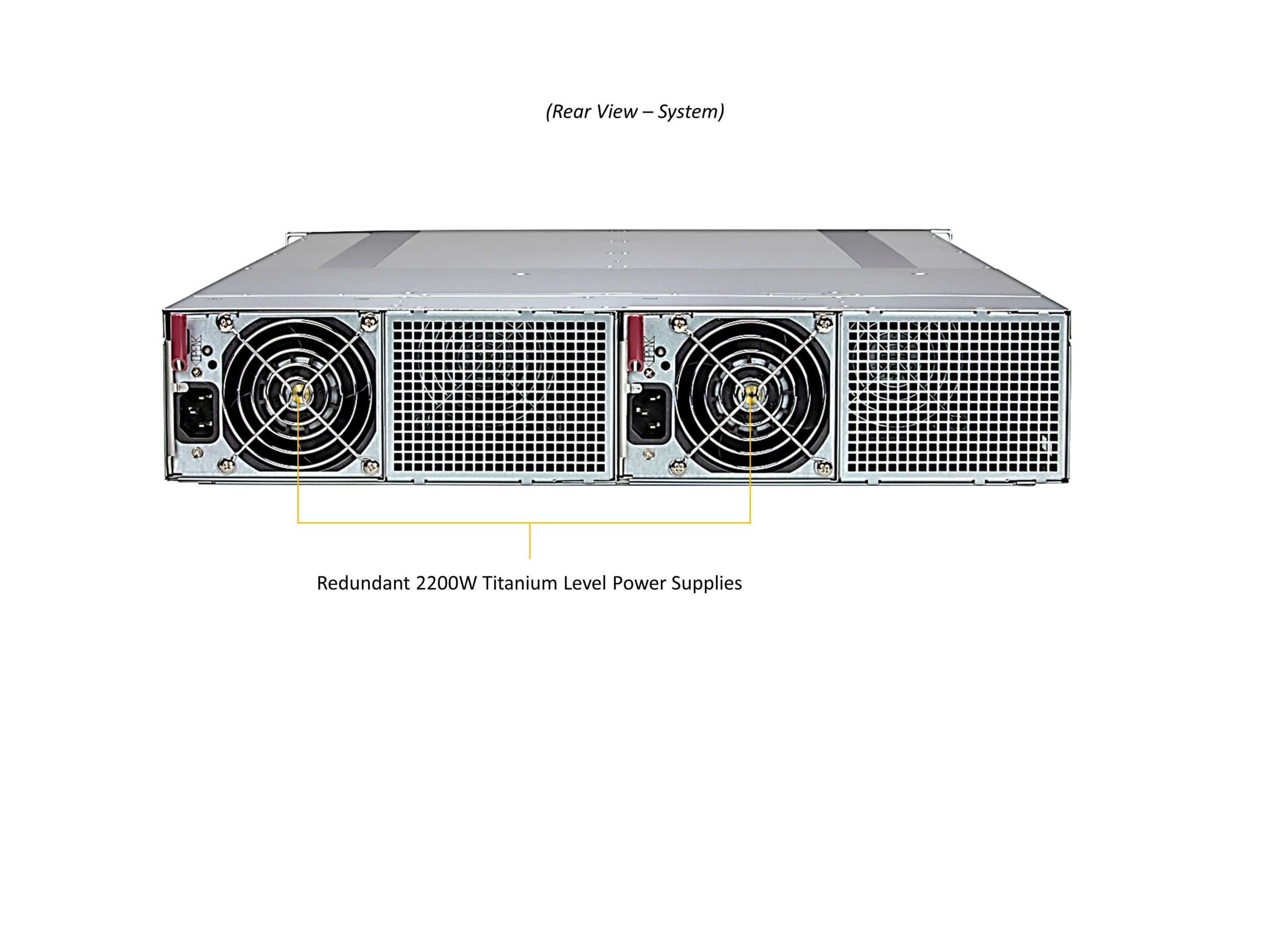

  7. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Specifications

Product SKUs
  • SuperServer SYS-211GT-HNTF
Motherboard

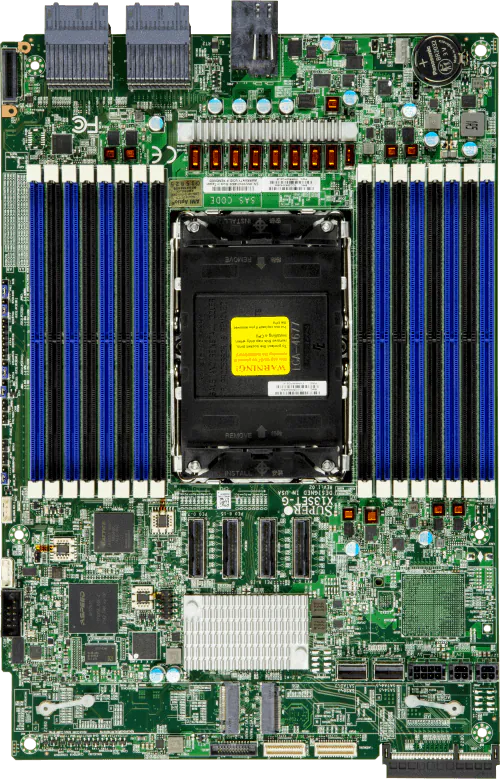

  • Super X13SET-G
Processor (per Node)
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
Core Count
  • Up to 64C/128T; Up to 320MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Network Connectivity
  • Via IO Module
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-211GT-HNTF
  • Super X13SET-G
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP2
Dimensions and Weight
Height
  • 3.46″ (88 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 28″ (711.2 mm)
Package
  • 9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Option A*1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Option A: Total 4 bays4 front hot-swap 2.5″ PCIe 5.0 NVMe*/SATA* drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 NVMe*/SATA* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 84 x 245.3 mm
Input
  • 200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB
  • Max: 2A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
