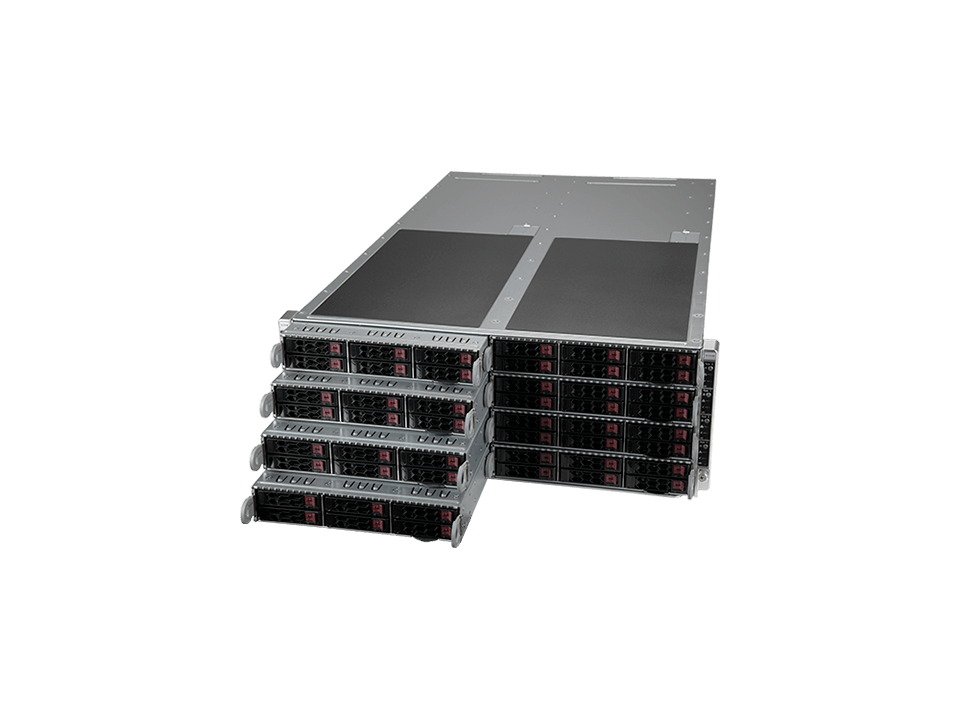

Supermicro SuperServer SYS-F610P2-RTN
Supermicro SuperServer SYS-F610P2-RTN - imagine 2
Supermicro SuperServer SYS-F610P2-RTN - imagine 3
Supermicro SuperServer SYS-F610P2-RTN - imagine 4
Supermicro SuperServer SYS-F610P2-RTN - imagine 5
Supermicro SuperServer SYS-F610P2-RTN - imagine 6
, , ,

Supermicro SuperServer SYS-F610P2-RTN

Favorite
Compara

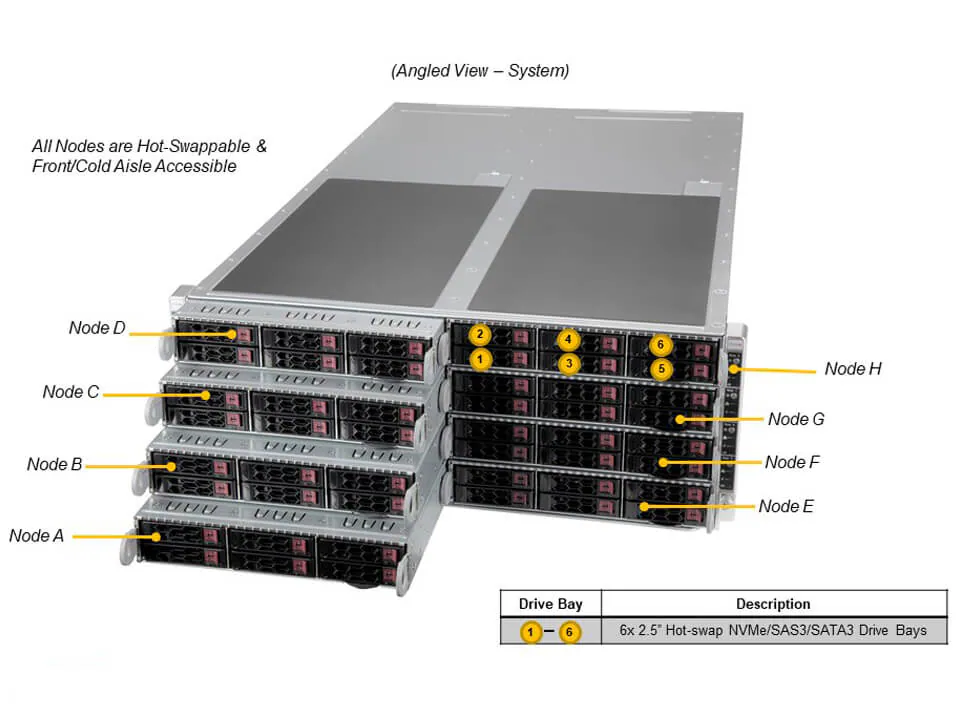

4U 8-node FatTwin with 6 2.5″ NVMe/SAS/SATA bays per node

Pretul afisat contine TVA (21%).

SuperServer SYS-F610P2-RTN

4U 8-node FatTwin with 6 2.5″ NVMe/SAS/SATA bays per node

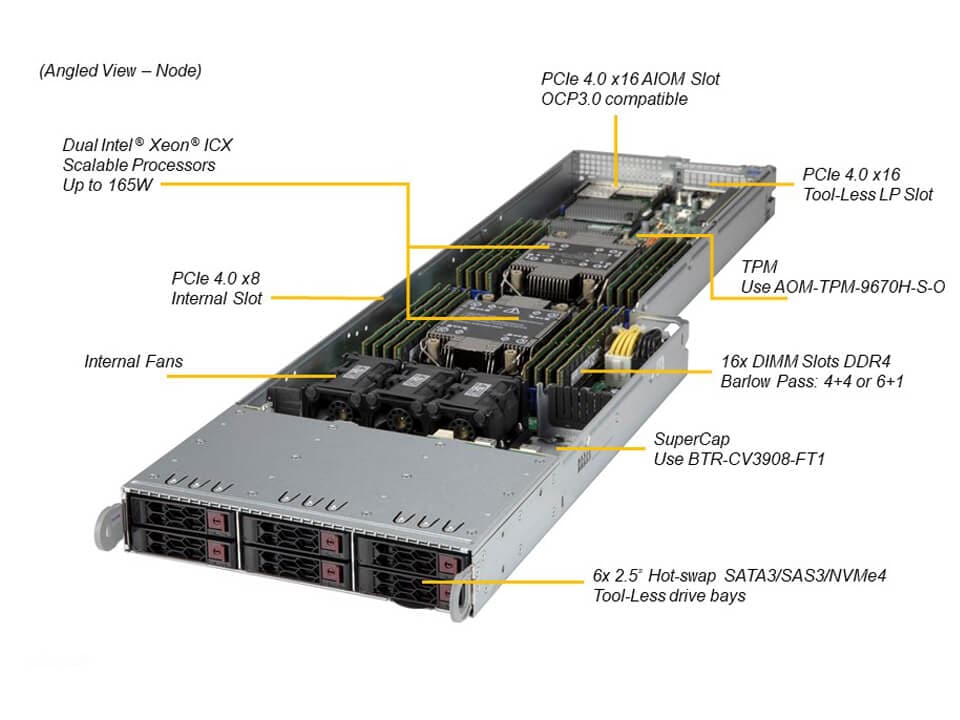

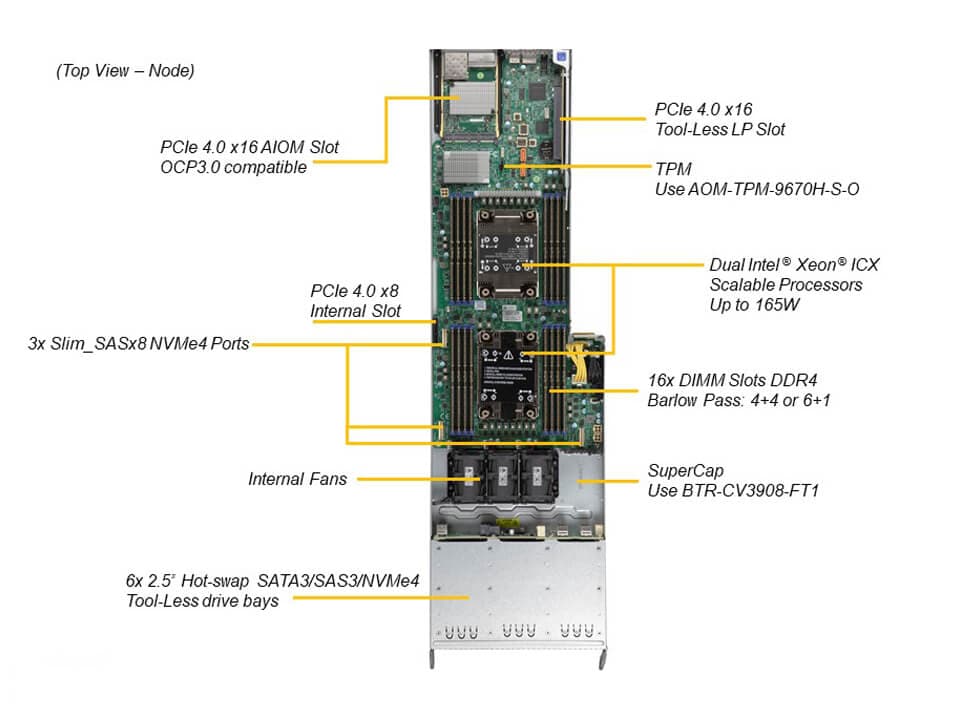

Key Features

  1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
  2. Two M.2 Internal Drives
  3. NVMe/SATA/SAS options
  4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
  5. Front access node for better serviceability; 6x 2.5†hot-swap HDDs per nodeUp to 6x SAS/SATA/NVMe Hot Swap 2.5†Drives

Specifications

Product SKUs
  • SuperServer SYS-F610P2-RTN
Motherboard

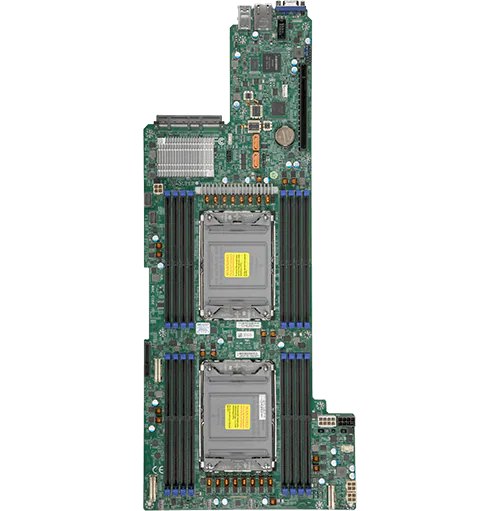

  • Super X12DPFR-AN6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB non-ECC DDR4
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • 1 RJ45 1GbE
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • SuperServer SYS-F610P2-RTN
  • Super X12DPFR-AN6
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC3-R2K20BP
Dimensions and Weight
Height
  • 6.96″ (177 mm)
Width
  • 17.63″ (448 mm)
Depth
  • 29″ (737 mm)
Package
  • 15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight
  • Gross Weight: 200 lbs (90.71 kg)
  • Net Weight: 150 lbs (68.04 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED

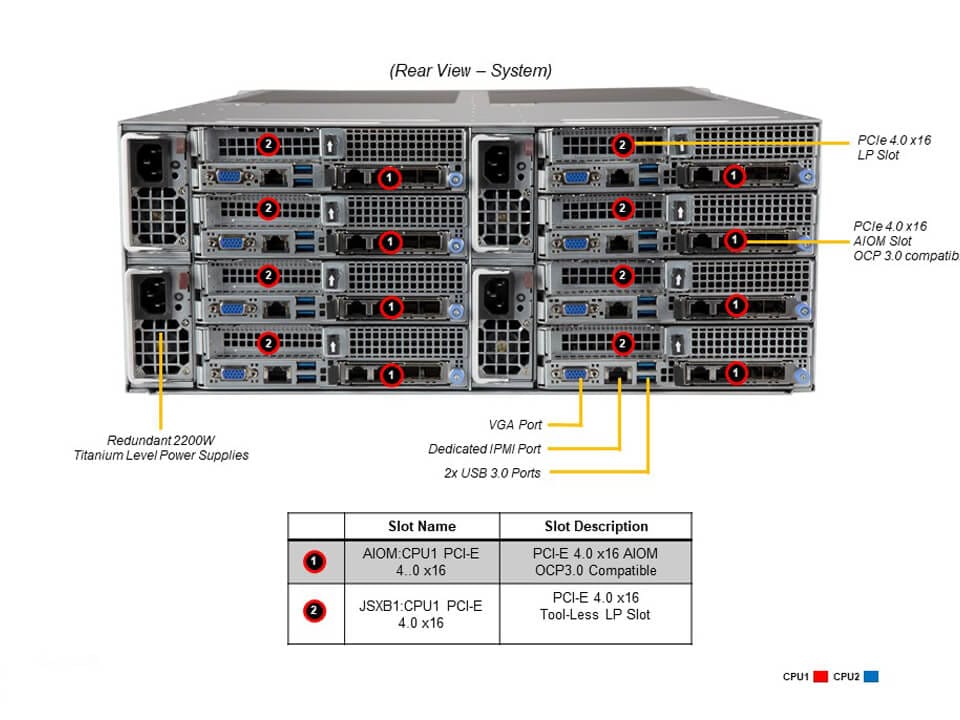

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 6 bays6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
System Cooling
Fans
  • Up to 3x 4cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Total Output Power
  • (for UL/cUL use only)(for CCC only)
Input
  • 1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 5% to 95% (8)
  • Non-operating Relative Humidity: 90% to 5% (95)
  • 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
