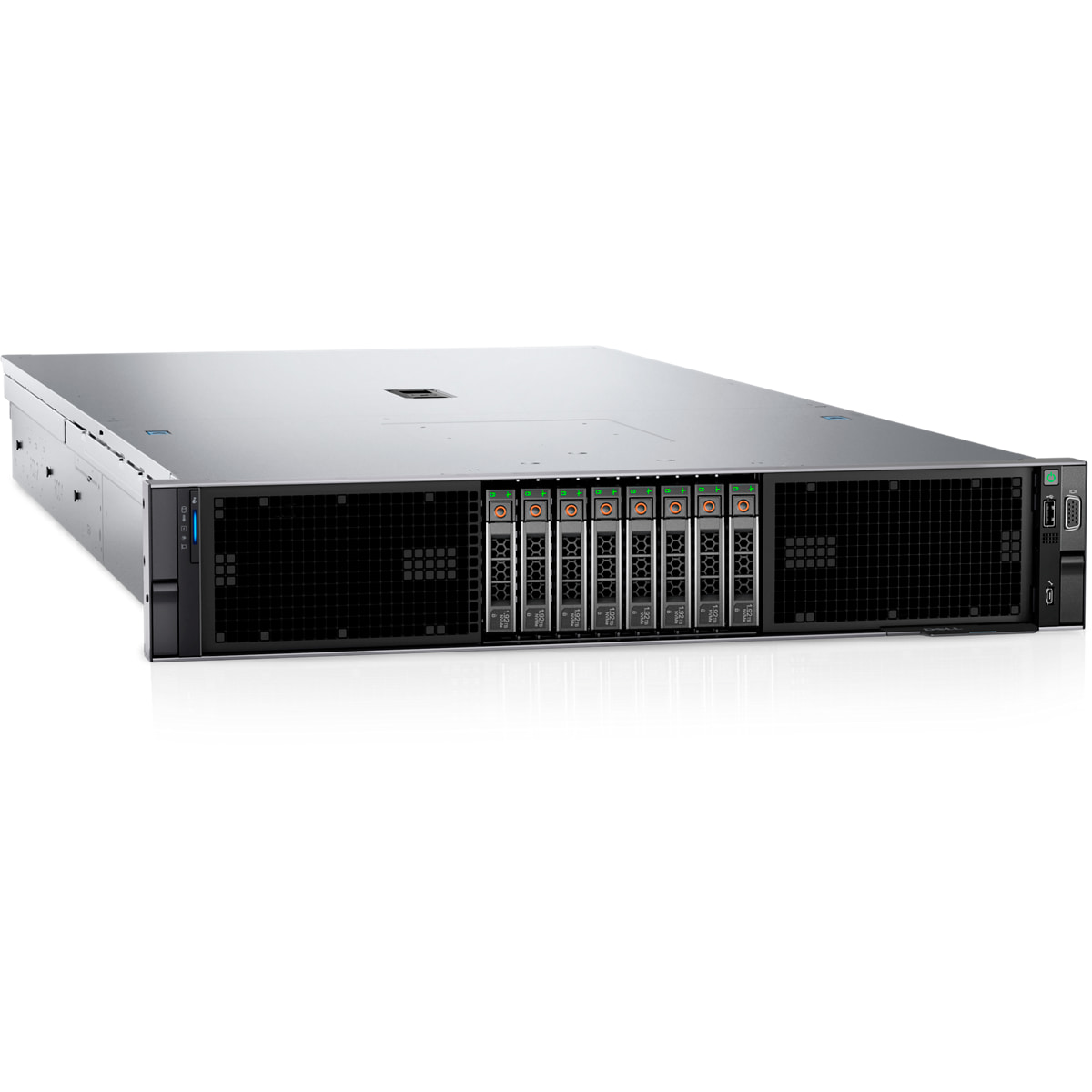

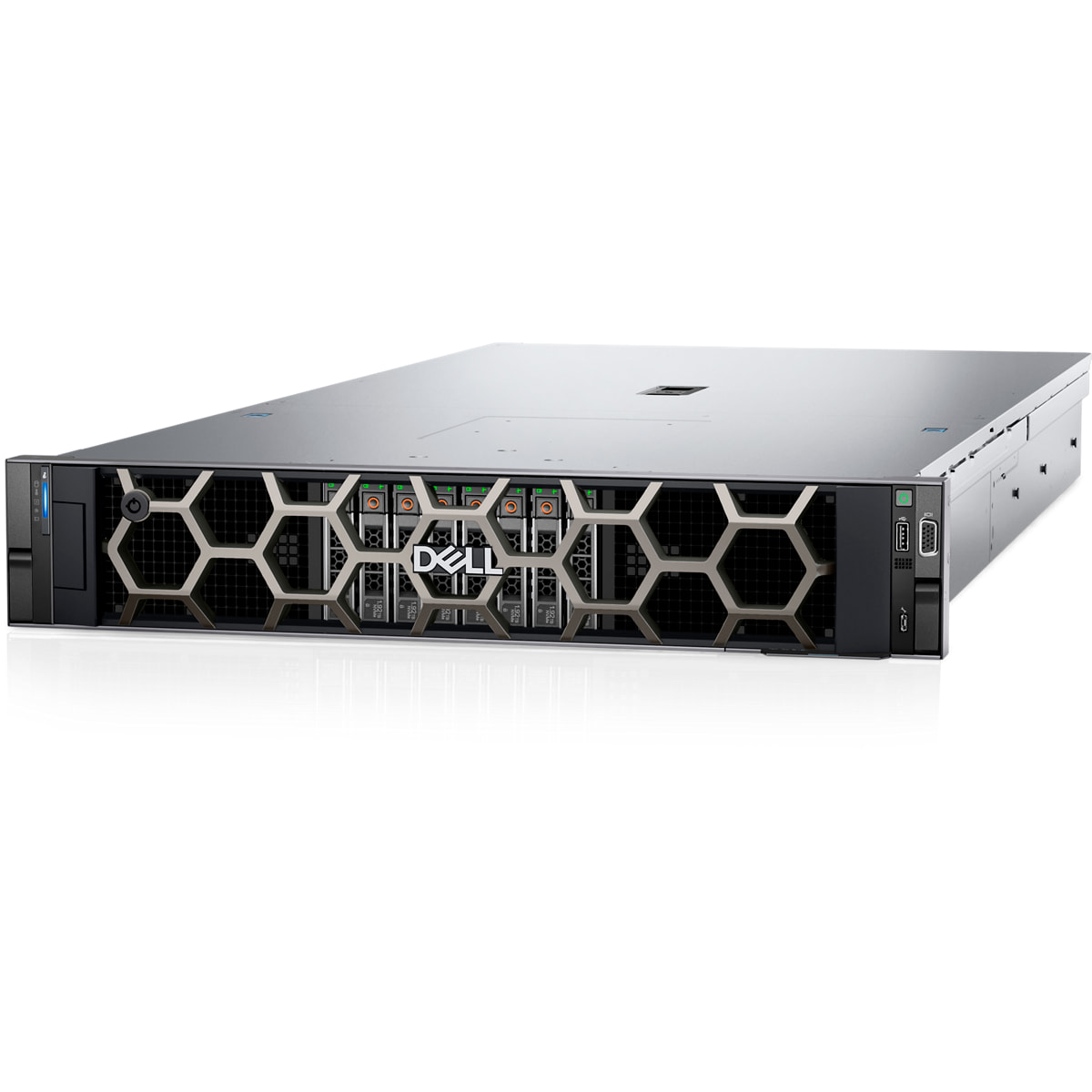

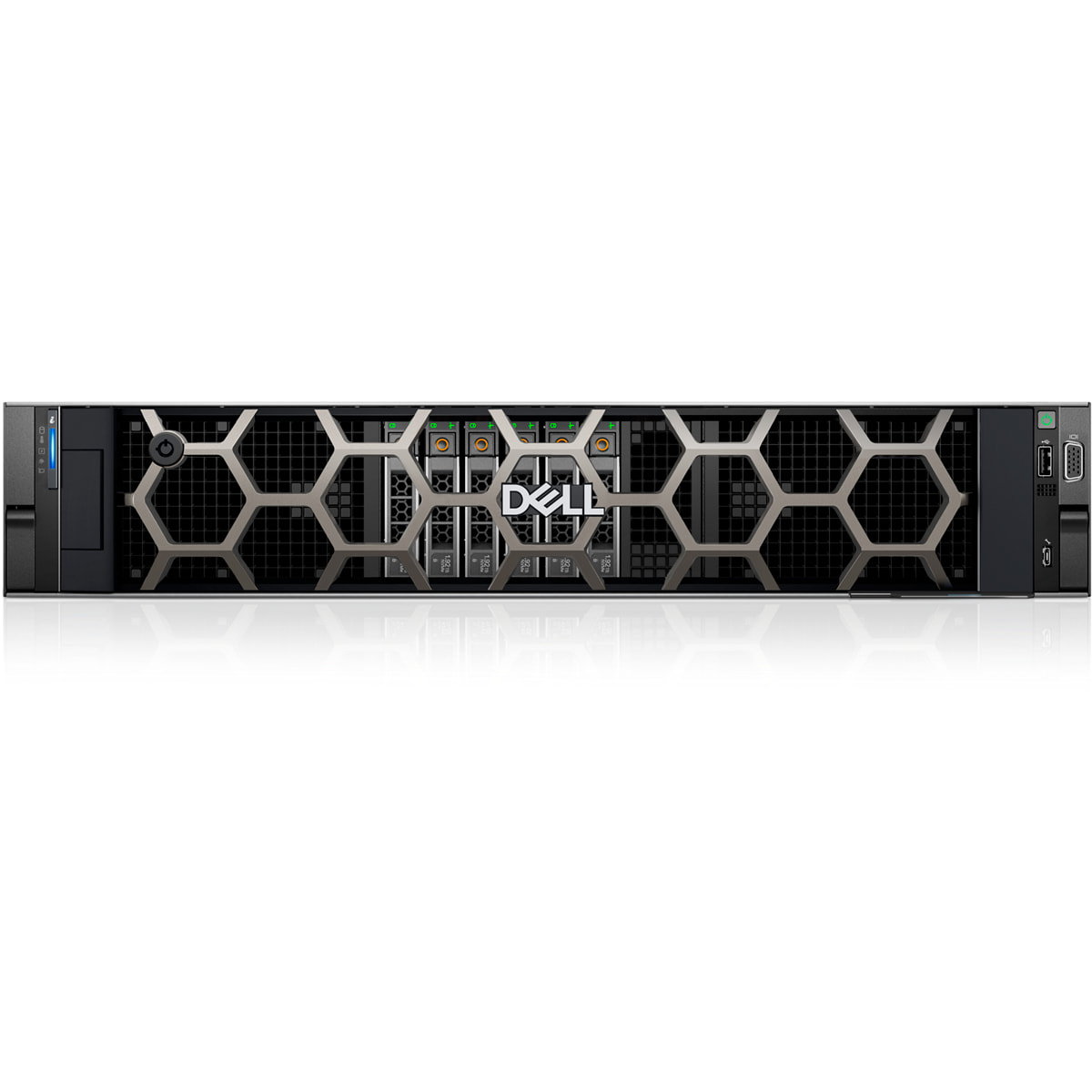

Dell PowerEdge R760xa
Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.
PowerEdge R760xa
Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.
Key Features
Powerful and scalable for GPU workloads
Scale as you grow with this high-performance air-cooled server engineered for a wide range of applications like AI-ML/DL training and inferencing, advanced analytics and VDI workloads.
Specifications
| Processor | Up to 2 x 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and with optional Intel®QuickAssist Technology |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C741 Chipset |
| Memory | DIMM Speed Up to 5600 MT/s on the 5th Generation Intel®Xeon Scalable processor Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 8 TB |
| Storage | Front Bay Up to 6 x 2.5-inch NVMe, max 92.16 TB Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB |
| Storage Controllers | Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish® iDRAC Service Module Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI Dell System Update Enterprise Catalogs Dell Repository Manager OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note:The system allows either LOM card or an OCP card or both to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
| Slots | 1 x USB 3.0 (optional) Up to 12 PCIe slots |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 inches (86.8 mm) Width 18.97 inches (482 mm) Depth 37.27 inches (946.73 mm) with bezel 36.73 inches (932.89 mm) without bezel Weight: Max 60.63 lbs. (27.5 Kg) |
| Rack Support | Combo (Drop-in/Slide-in) rails with SRB for 4-post racks. Note:CMA is not supported in Direct Liquid Cooling configuration |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | Up to 2 x 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and with optional Intel®QuickAssist Technology |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C741 Chipset |
| Memory | DIMM Speed Up to 5600 MT/s on the 5th Generation Intel®Xeon Scalable processor Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 8 TB |
| Storage | Front Bay Up to 6 x 2.5-inch NVMe, max 92.16 TB Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB |
| Storage Controllers | Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish® iDRAC Service Module Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish IPMI RACADM CLI Dell System Update Enterprise Catalogs Dell Repository Manager OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note:The system allows either LOM card or an OCP card or both to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
| Slots | 1 x USB 3.0 (optional) Up to 12 PCIe slots |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 inches (86.8 mm) Width 18.97 inches (482 mm) Depth 37.27 inches (946.73 mm) with bezel 36.73 inches (932.89 mm) without bezel Weight: Max 60.63 lbs. (27.5 Kg) |
| Rack Support | Combo (Drop-in/Slide-in) rails with SRB for 4-post racks. Note:CMA is not supported in Direct Liquid Cooling configuration |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
