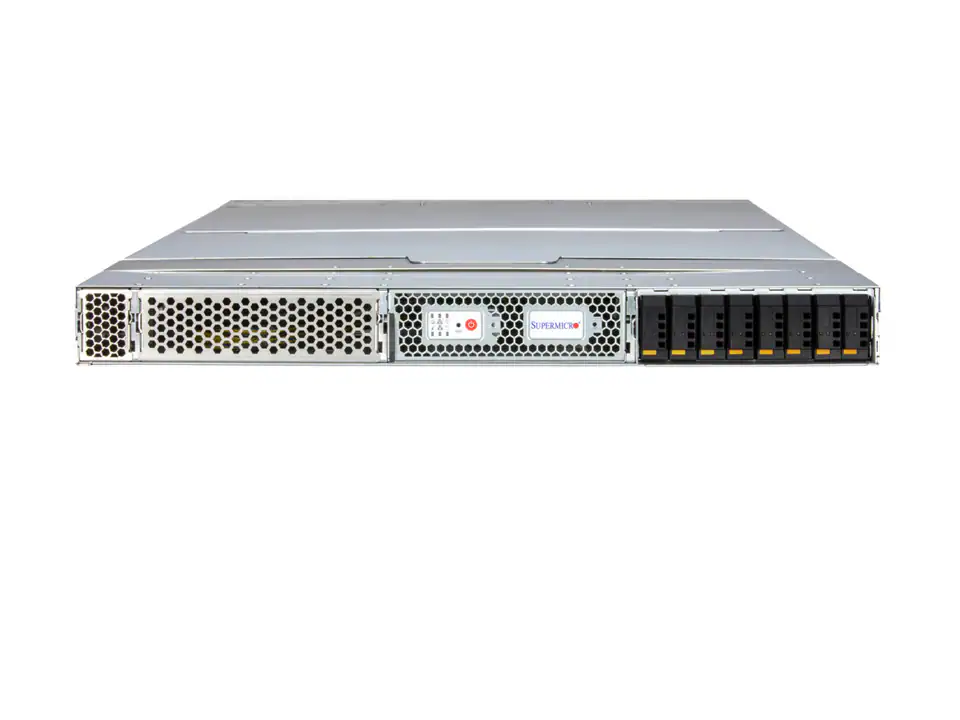

Supermicro SuperServer ARS-122L-NR - imagine 2
, , ,

Supermicro SuperServer ARS-122L-NR

Favorite
Compara

1U air-cooled system with dual NVIDIA Vera CPUs

Pretul afisat contine TVA (21%).

SuperServer ARS-122L-NR

1U air-cooled system with dual NVIDIA Vera CPUs

Key Features

  1. 1U 1Node Air-cooled system with Dual NVIDIA VERA CPU, 450W TDP per processor with air cooling
  2. Up to 1.5TB LPDDR5X SOCAMM2 per CPU
  3. Up to 4 PCIe 6.0 x16 FHFL NIC slots (max of 2x BF-3 DPU)
  4. Up to 8x PCIe 6.0 E1.S drive bays2 PCIe 6.0 x4 NVMe M.2 slots
  5. Up to 8x PCIe 6.0 E1.S drive bays
  6. 2 PCIe 6.0 x4 NVMe M.2 slots
  7. 2 redundant (1+1) 2700W Titanium level efficiency power supplies

Specifications

Product SKUs
  • ARS-122L-NR
Motherboard
  • Super G3DBV
Processor
CPU
  • Dual processor(s)
  • NVIDIA Vera CPU C2 (88-core)
Note
  • Supports up to 450W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 3TB ECC LPDDR5X
On-Board Devices
Chipset
  • NVIDIA C2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 1 RJ45 1 GbE LAN port
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • Redfish API
  • Supermicro Update Manager (SUM)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Watch Dog
  • OOB Management Package (SFT-OOB-LIC )
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-122L-NR
  • Super G3DBV
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MG107TS-R000NDFP
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 9.05″ (H) x 27.36″ (W) x 46.06″ (D)
Weight
  • Gross Weight: 49.21 lbs (22.32 kg)
  • Net Weight: 33.64 lbs (15.26 kg)
Available Color
  • Silver

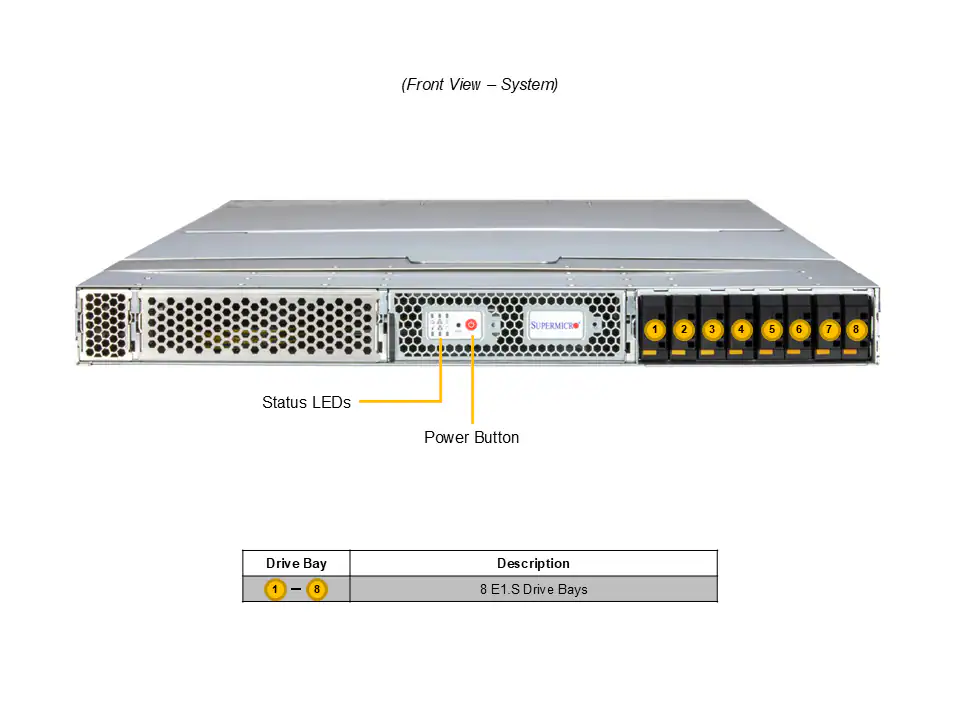

Front Panel
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 6.0 x16 (in x16) FHFL slots
  • 4 PCIe 6.0 x16 (in x16) FHFL slots
M.2
  • 2 M.2 PCIe 5.0 x8 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front fixed E1.S PCIe 5.0 x8 NVMe drive bays
  • 8 front fixed E1.S PCIe 5.0 x8 NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key; USB 3.0)
System Cooling
Fans
  • Up to 9 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm
