DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs

Pretul afisat contine TVA (21%).

SuperServer SYS-422GL-FNR2

DP Intel 4U Dual-Root PCIe GPU System with up to 8 GPUs

Key Features

  1. Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
  2. NVIDIA ConnectX®-8 PCIe switch board
  3. Support for up to 8 double-width PCIe GPU accelerator cards
  4. Up to 24 DIMMs supporting up to 6.0TB DDR5-6400 in 1DPC or 6.0TB DDR5-8800 in 1DPC
  5. 1 RJ45 1GBASE-T for BMC
  6. Up to 8 PCIe 6.0 x16 FH double-width + 2 PCIe 5.0 single-width x16 FHHL slots
  7. Up to 8 rear hot-swap E1.S NVMe drive bays
  8. 4 Redundant 3200W Titanium Level power supplies

Specifications

Product SKUs
  • SuperServer SYS-422GL-FNR2
Motherboard

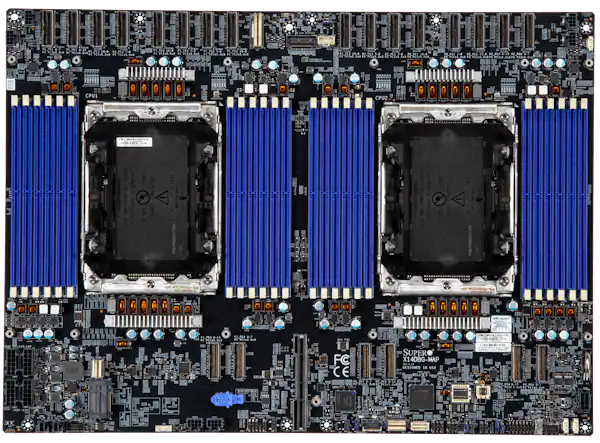

  • Super X14DBG-MAP
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • 128C/144T
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): 6.0TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): 6.0TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 1 RJ45 1GBASE-T with ASPEED AST2600
Input / Output
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
  • SuperServer SYS-422GL-FNR2
  • Super X14DBG-MAP
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-MG401TS-R0BNDFP
Dimensions and Weight
Height
  • 6.93″ (176 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 31.5″ (800 mm)
Package
  • 27.32″ (H) x 49.41″ (W) x 19.49″ (D)
Weight
  • Gross Weight: 96.45 lbs (43.75 kg)
  • Net Weight: 49.5 lbs (22.45 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default8 PCIe 6.0 x16 FH double-width slots 2 PCIe 5.0 x16 FHHL slots
  • 8 PCIe 6.0 x16 FH double-width slots
  • 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default))
  • View M.2 Options
System Cooling
Fans
  • 10 Fan 80mm Fan(s)
Power Supply
  • 4x 3200W 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 4x 3200W 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
