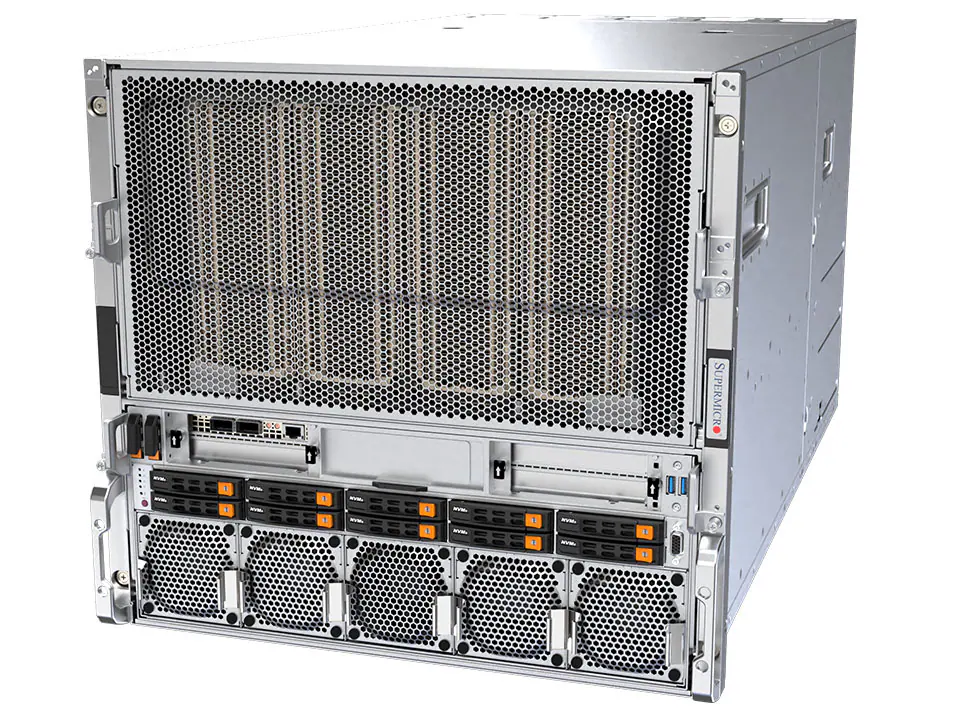

DP Intel 10U System with NVIDIA HGX B200 8-GPU

Pretul afisat contine TVA (21%).

SuperServer SYS-A22GA-NBRT

DP Intel 10U System with NVIDIA HGX B200 8-GPU

Key Features

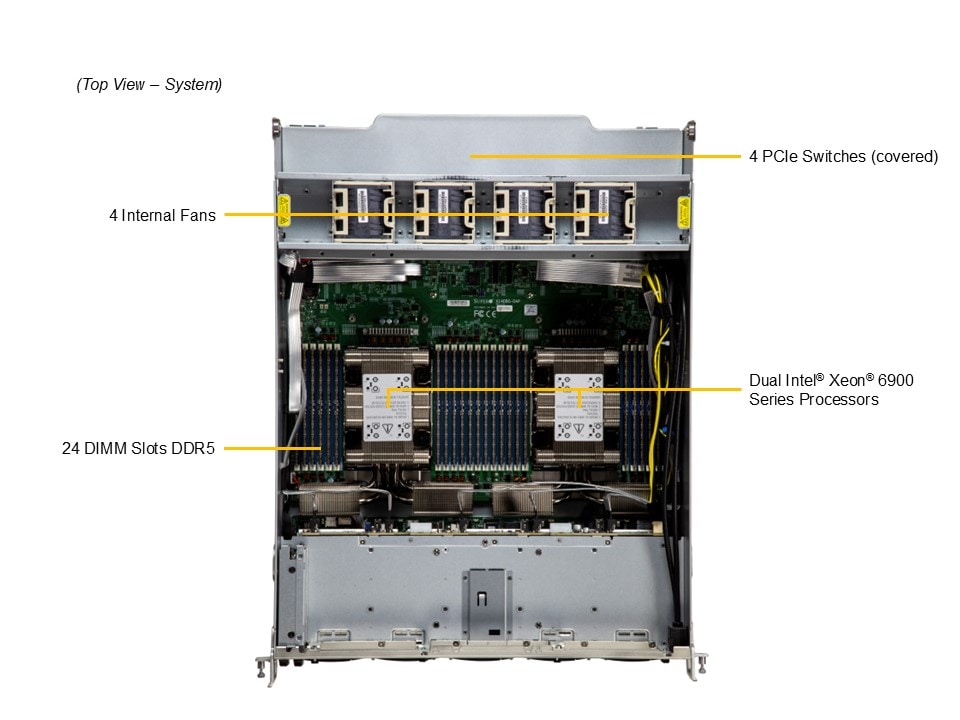

  1. Dual Intel® Xeon® 6900 series processors with P-cores
  2. 8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
  3. 24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
  4. 10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
  5. 10x front hot-swap 2.5″ NVMe U.2, 2x front hot-swap NVMe M.2
  6. 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI

Specifications

Product SKUs
  • SuperServer SYS-A22GA-NBRT
Motherboard

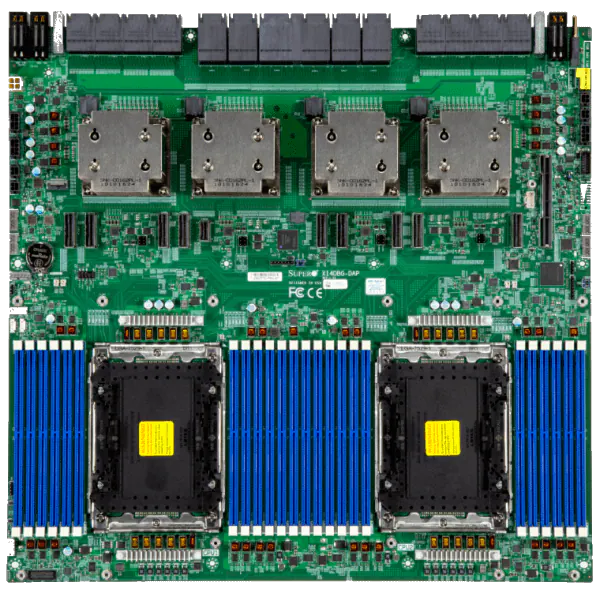

  • Super X14DBG-DAP
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-A22GA-NBRT
  • Super X14DBG-DAP
Chassis
Form Factor
  • 10U Rackmount
Model
  • CSE-GP1001TS-R000NPF
Dimensions and Weight
Height
  • 17.2″ (438.8 mm)
Width
  • 17.6″ (449 mm)
Depth
  • 33.2″ (843.28 mm)
Package
  • 27.95″ (H) x 28.74″ (W) x 50.39″ (D)
Weight
  • Gross Weight: 341 lbs (155 kg)
  • Net Weight: 293 lbs (133 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID/ Reset button
LED
  • HDD activity
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
  • 10 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
  • 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller)
  • View M.2 Options
System Cooling
Fans
  • Up to 15 counter-rotating 80x80x80mm Fan(s)
  • Up to 4 counter-rotating 60x60x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply

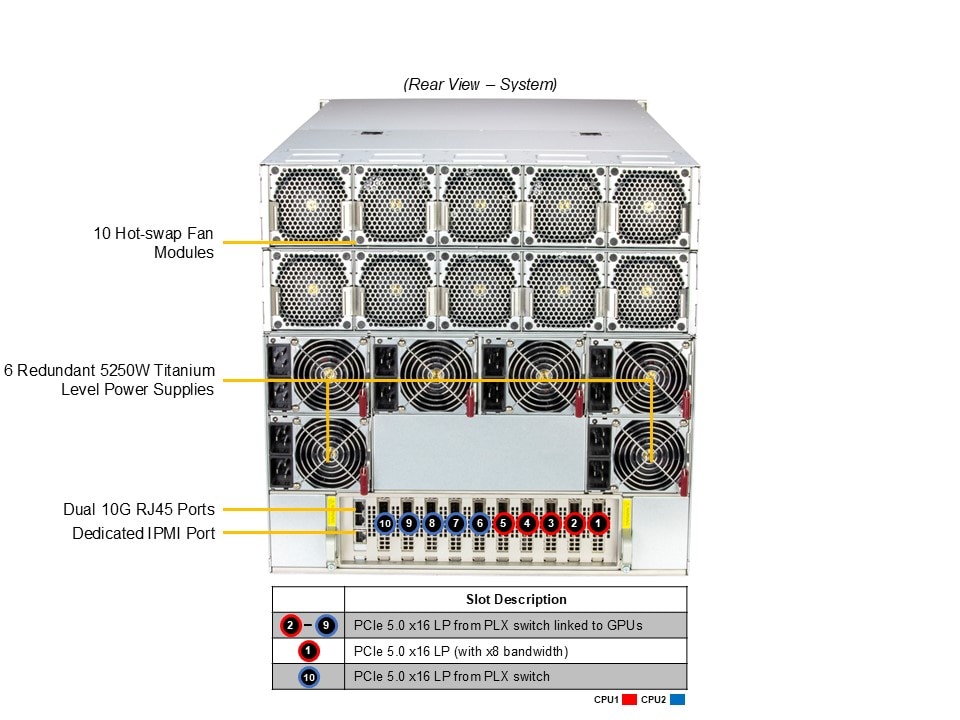

  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.3 mm
Input
  • 5250W: 200-240Vac / 50-60Hz
+12V
  • Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 6x 5250W 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.3 mm Input5250W: 200-240Vac / 50-60Hz +12VMax: 125A / Min: 0A (200Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
