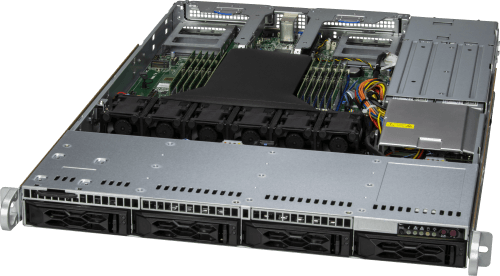

Supermicro SuperServer AS -1015CS-TNR
Supermicro SuperServer AS -1015CS-TNR - imagine 2
Supermicro SuperServer AS -1015CS-TNR - imagine 3
Supermicro SuperServer AS -1015CS-TNR - imagine 4
Supermicro SuperServer AS -1015CS-TNR - imagine 5
Supermicro SuperServer AS -1015CS-TNR - imagine 6
, , ,

Supermicro SuperServer AS -1015CS-TNR

Favorite
Compara

1U CloudDC with 4 hot-swap 3.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer AS -1015CS-TNR

1U CloudDC with 4 hot-swap 3.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

Key Features

  1. Single AMD EPYC™ 9004/9005* Series Processor(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  2. Single AMD EPYC™ 9004/9005* Series Processor
  3. (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  4. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s(Please check System Memory Section for detail)
  5. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
  6. (Please check System Memory Section for detail)
  7. 2 PCIe 5.0 x16 FHHL
  8. Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
  9. 4 Hot-swap 3.5″/2.5″ SATA drive baysOptional 4 Hot-swap NVMe/SAS drives support via additional parts2 M.2 PCIe 3.0 x2 NVMe slots
  10. 4 Hot-swap 3.5″/2.5″ SATA drive bays
  11. Optional 4 Hot-swap NVMe/SAS drives support via additional parts
  12. 2 M.2 PCIe 3.0 x2 NVMe slots
  13. Dual 860W Redundant Platinum Level power supplies(Power supply full redundancy based on configuration and application load)
  14. Dual 860W Redundant Platinum Level power supplies
  15. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -1015CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
  • A+ Server AS -1015CS-TNR-EU European version with PWS-861A-1R (Titanium Level)

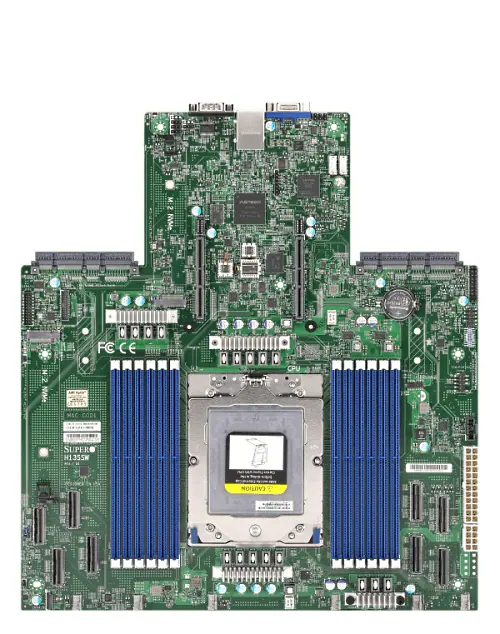

Motherboard
  • Super H13SSW
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count
  • Up to 160C/320T
Note
  • Supports up to 400W TDP CPUs *
  • *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A2, L4
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe

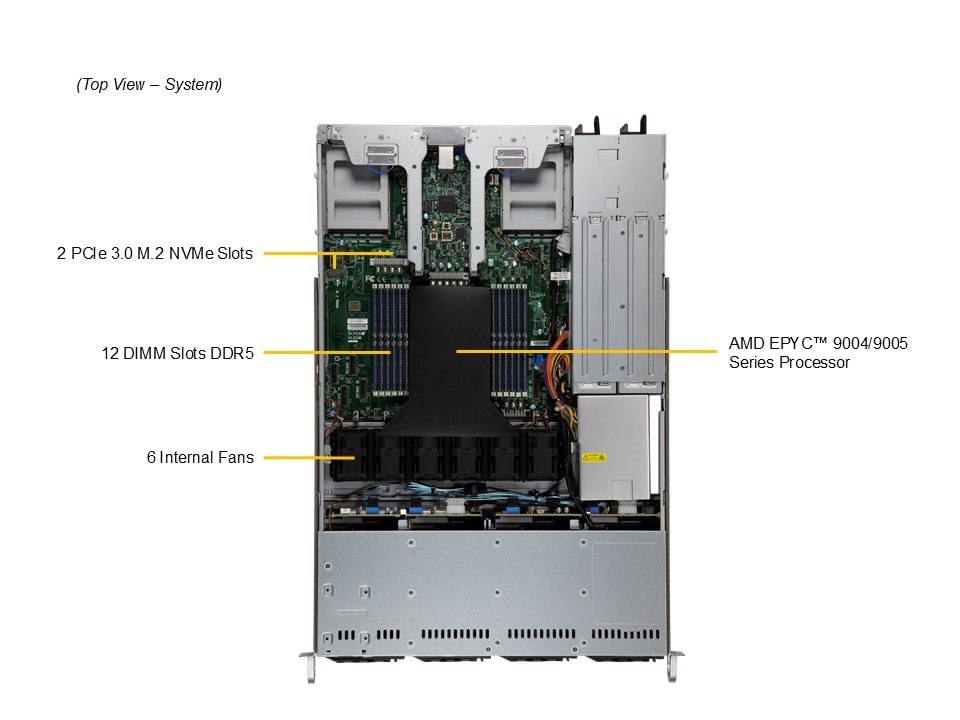

System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
  • Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Server AS -1015CS-TNR Standard version with PWS-860P-1R2 (Platinum Level)
  • A+ Server AS -1015CS-TNR-EU European version with PWS-861A-1R (Titanium Level)
  • Super H13SSW
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LA15TS-R860AWP2
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 7.8″ (H) x 23.8″ (W) x 34.6″ (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & sliver body

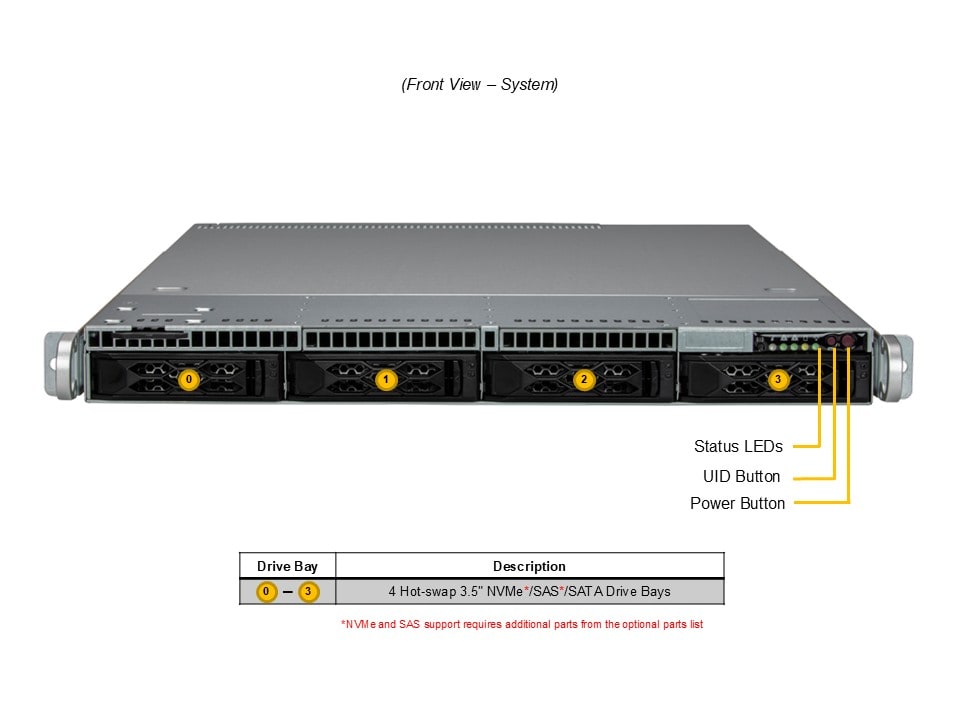

Front Panel
Buttons
  • Power On/Off
  • Reset button
  • Universal Information (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)

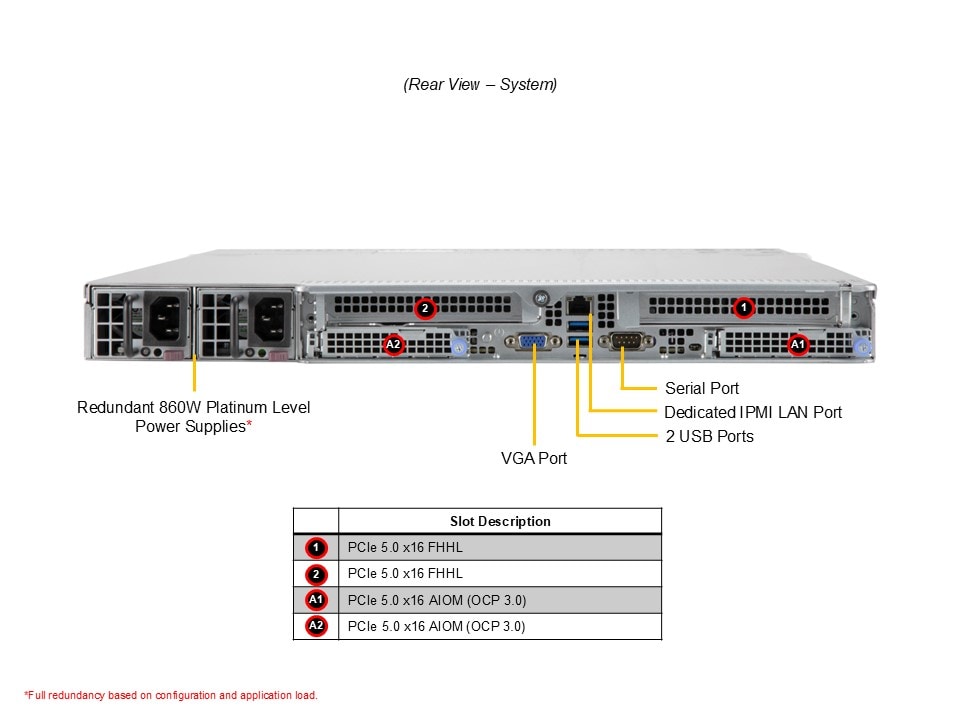

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration

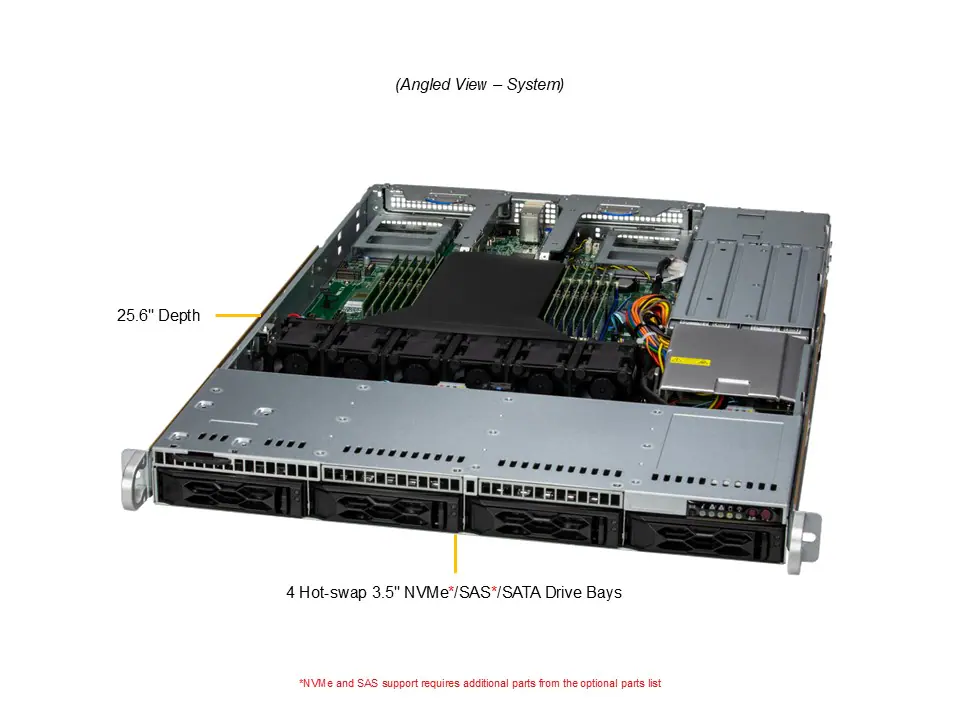

  • Default: Total 4 bays4 front hot-swap 3.5″/2.5″ SATA drive bays
  • 4 front hot-swap 3.5″/2.5″ SATA drive bays
  • Option A: Total 4 bays4 front hot-swap 2.5″ PCIe 5.0 NVMe* drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 NVMe* drive bays
  • Option B: Total 4 bays4 front hot-swap 3.5″/2.5″ SAS* drive bays
  • 4 front hot-swap 3.5″/2.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 860W 2x 860W 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 860W 2x 860W 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
