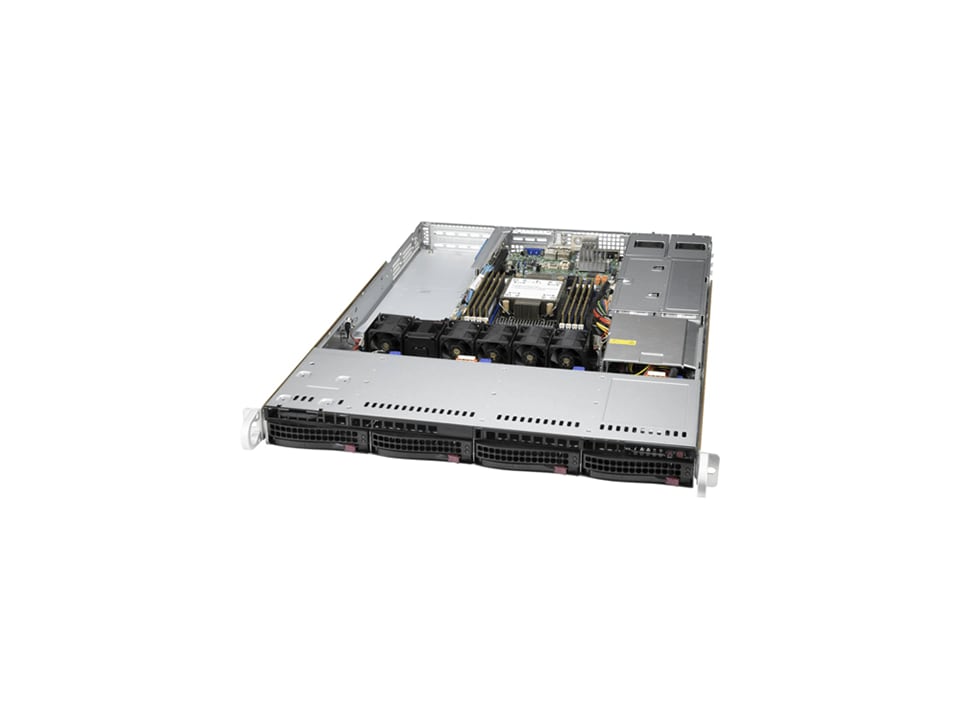

1U WIO with 4 hot-swap 3.5″ NVMe/SAS/SATA bays and 3 PCIe 4.0 x16 slots

Pretul afisat contine TVA (21%).

SuperServer SYS-510P-WTR

1U WIO with 4 hot-swap 3.5″ NVMe/SAS/SATA bays and 3 PCIe 4.0 x16 slots

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 2 PCIe 4.0 x16 (FHFL) slots, 1 PCIe 4.0 x16 (LP) slot
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
  6. Redundant Platinum 500W Power Supply

Specifications

Product SKUs
  • SuperServer SYS-510P-WTR Standard version with PWS-504P-1R (Platinum Level)
  • SuperServer SYS-510P-WTR-EU European version with PWS-601A-1R (Titanium Level)
Motherboard

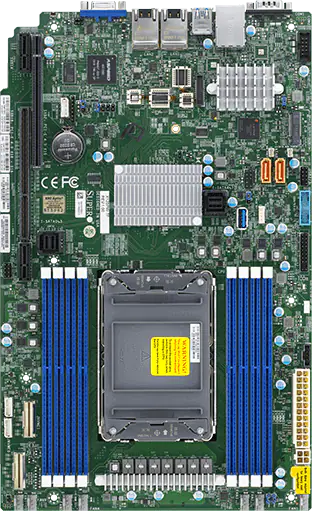

  • Super X12SPW-TF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
  • NVIDIA PCIe: A2, T1000, T400
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550

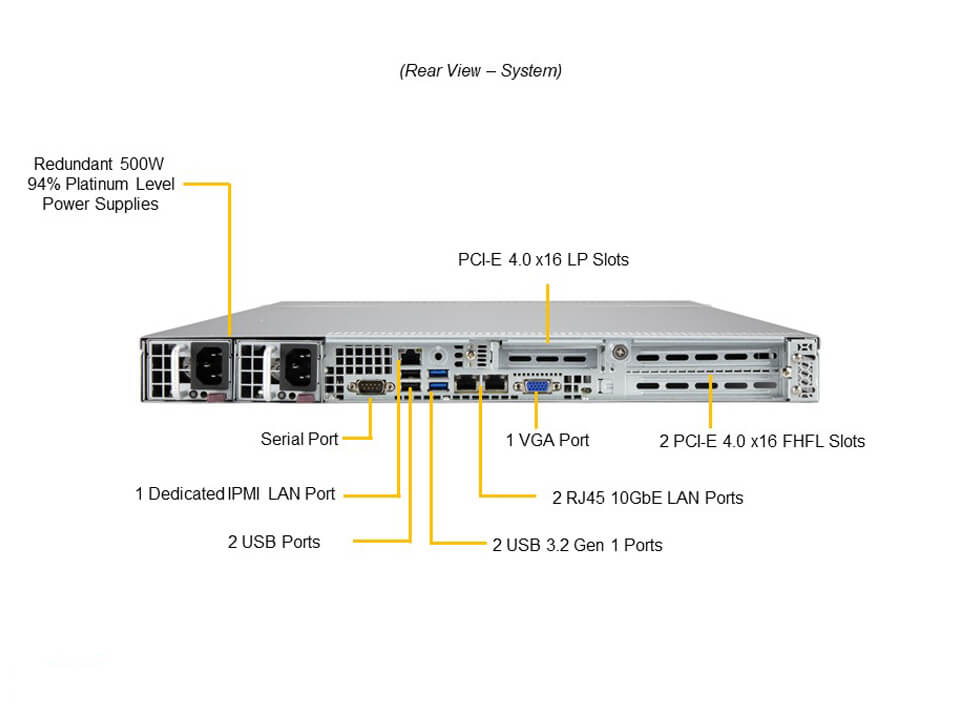

Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port
  • 1 USB 2.0 port(Header)
Video
  • 1 VGA 2 port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-510P-WTR Standard version with PWS-504P-1R (Platinum Level)
  • SuperServer SYS-510P-WTR-EU European version with PWS-601A-1R (Titanium Level)
  • Super X12SPW-TF
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP6
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 8.5″ (H) x 23.5″ (W) x 33.7″ (D)
Weight
  • Gross Weight: 48 lbs (21.77 kg)
  • Net Weight: 24 lbs (10.89 kg)
Available Color
  • Black

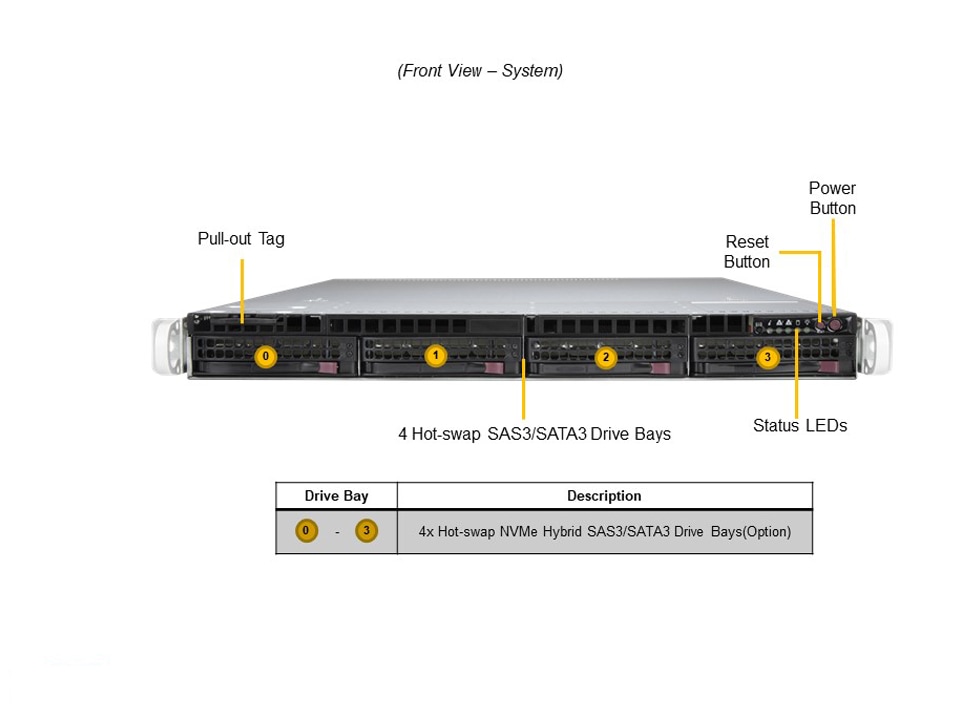

Front Panel
Buttons
  • Power On/Off
  • System Reset
  • UID button
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

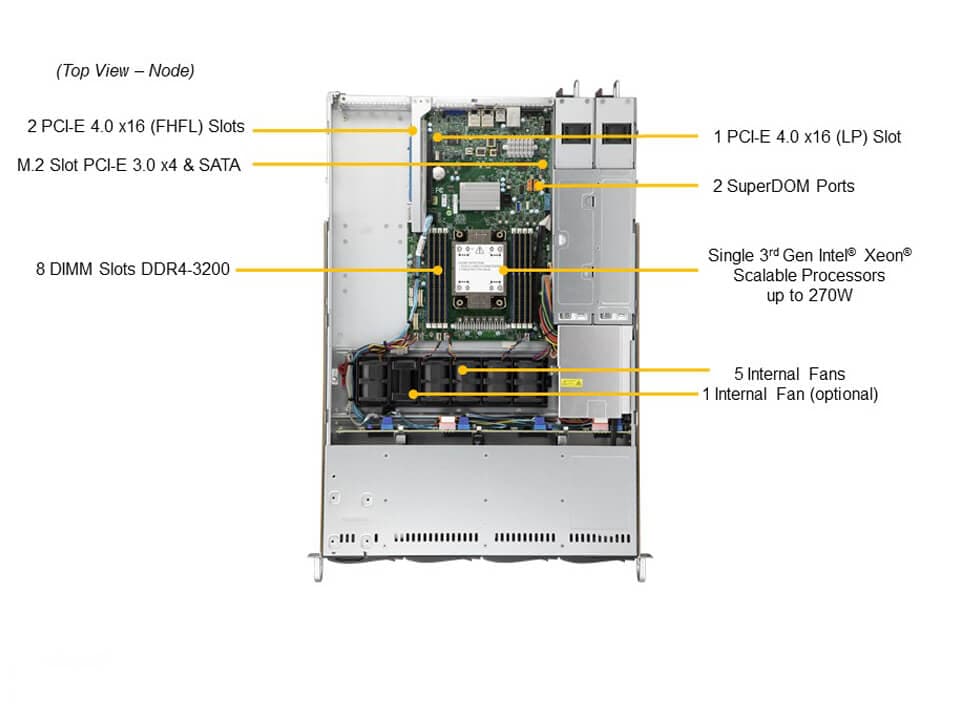

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot
  • 2 PCIe 4.0 x16 FHFL slots
  • 1 PCIe 4.0 x16 LP slot

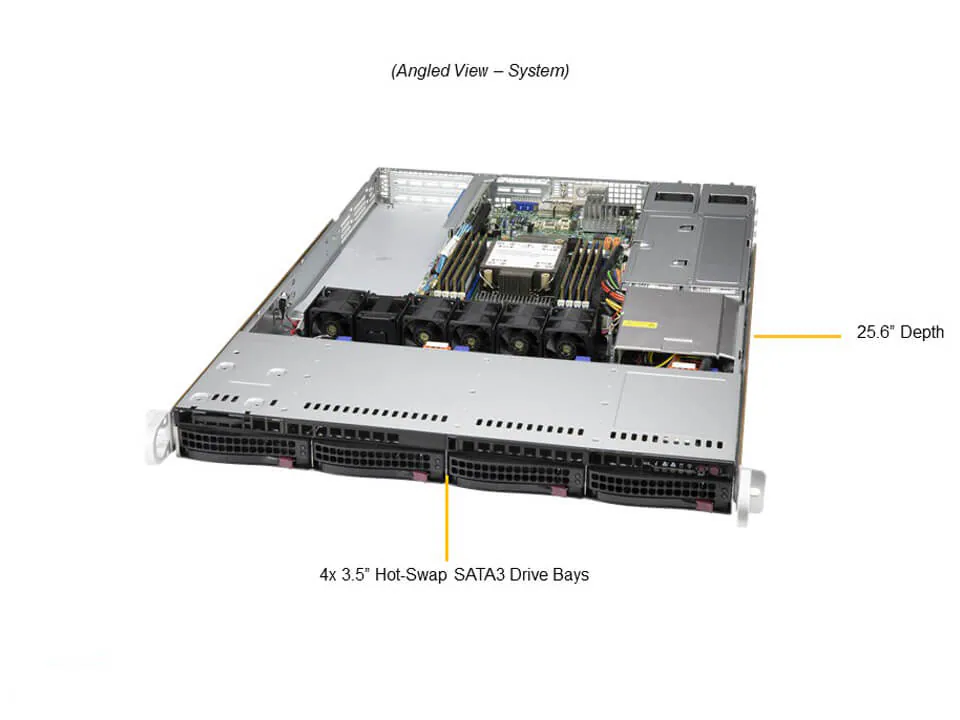

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 2 slim bays (optional)
System Cooling
Fans
  • Up to 5 counter-rotation PWM 40x40x56mm Fan(s)
  • Up to 1 AOC cooling Fan(s) (optional)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A Max: 42A / Min: 0.5A (100Vac-240Vac) 5V SBMax: 4A / Min: 0A Max: 3A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List
