Supermicro SuperServer SYS-620H-TN12R

Favorite

Compara

2U Hyper with 12 NVMe/SAS/SATA bays and up to 8 PCIe slots with GPU support

Pretul afisat contine TVA (21%).

SuperServer SYS-620H-TN12R

2U Hyper with 12 NVMe/SAS/SATA bays and up to 8 PCIe slots with GPU support

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
4 heavy duty hot-swap fans with optimal fan speed control

Specifications

Product SKUs
SuperServer SYS-620H-TN12R

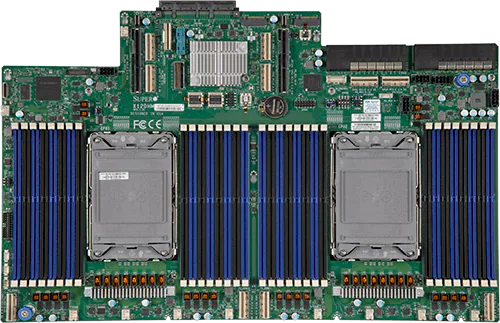

Motherboard
Super X12DHM-6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 double-width GPUs
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity	2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 RJ45 1GbE with Intel® I350-AM4 (optional) 4 SFP 1GbE with Intel® I350-AM4 (optional) 2 RJ45 10GBASE-T with Intel® X550-AT2 (optional) 2 SFP+ 10GbE with Intel® X710-BM2 (optional) 4 SFP+ 10GbE with Intel® XL710-BM1 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 4 SFP28 25GbE (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional)
System BIOS
BIOS Type	AMI 256MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-620H-TN12R
Super X12DHM-6
Chassis
Form Factor	2U Rackmount
Model	CSE-HS829-R1K24P
Dimensions and Weight
Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)
Depth	31.6″ (803 mm)
Package	10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight	Gross Weight: 63 lbs (28.6 kg) Net Weight: 37 lbs (16.8 kg)
Available Color	N/A

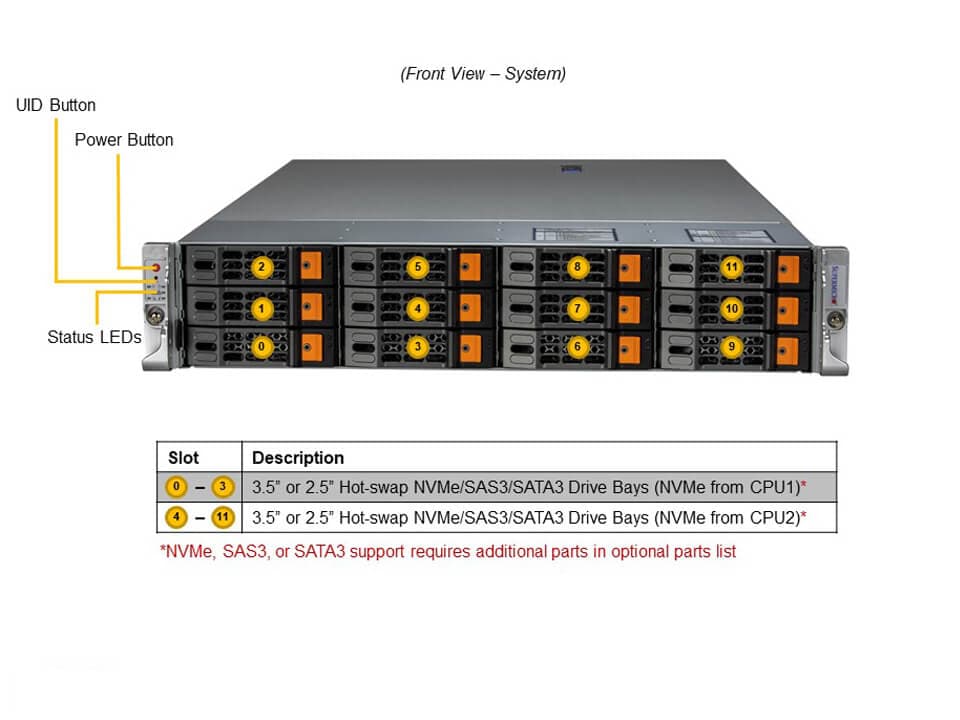

Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity Power System information

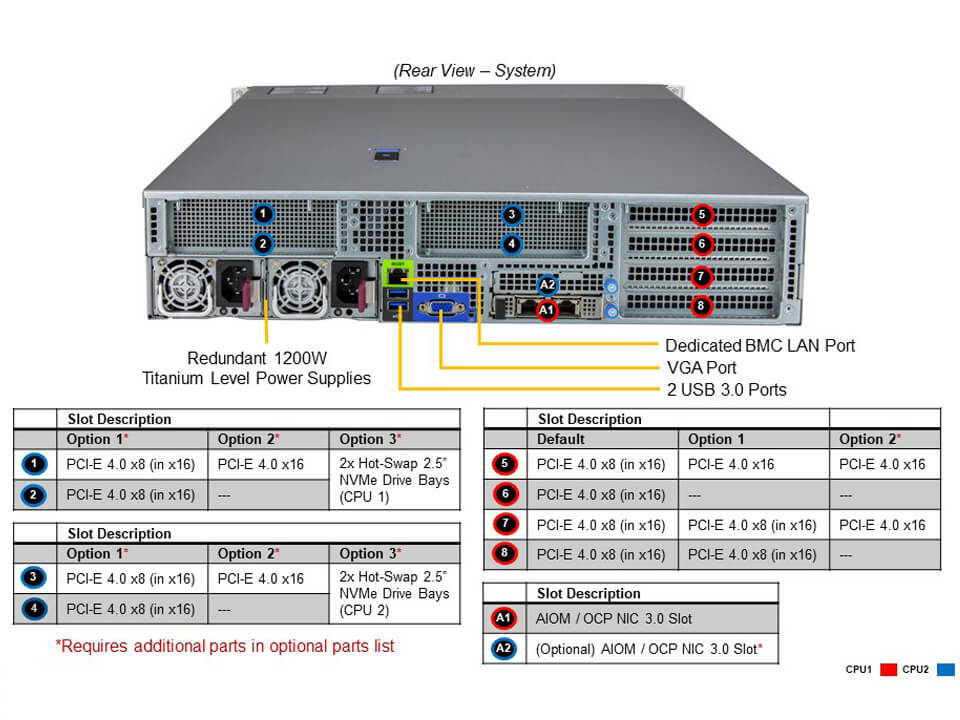

Expansion Slots
PCI-Express (PCIe) Configuration	Default8 PCIe 4.0 x8 (in x16) FH/10.5″L slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) 8 PCIe 4.0 x8 (in x16) FH/10.5″L slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) Option A2 PCIe 4.0 x8 (in x16) FH/10.5″L slots 3 PCIe 4.0 x16 FH/10.5″L slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) 2 PCIe 4.0 x8 (in x16) FH/10.5″L slots 3 PCIe 4.0 x16 FH/10.5″L slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

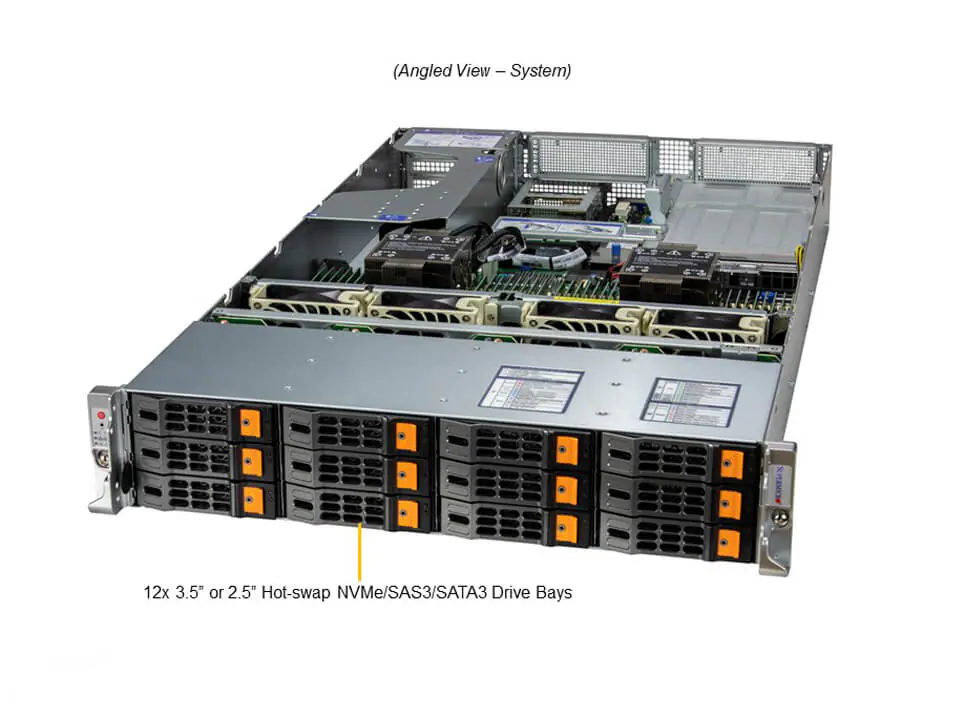

Drive Bays / Storage
Drive Bays Configuration	Default: Total 12 bays12 front hot-swap 3.5″ NVMe/SAS/SATA* drive bays 12 front hot-swap 3.5″ NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds
Power Supply
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
