Supermicro SuperServer SSG-136R-4MU32JBF

Favorite
Compara

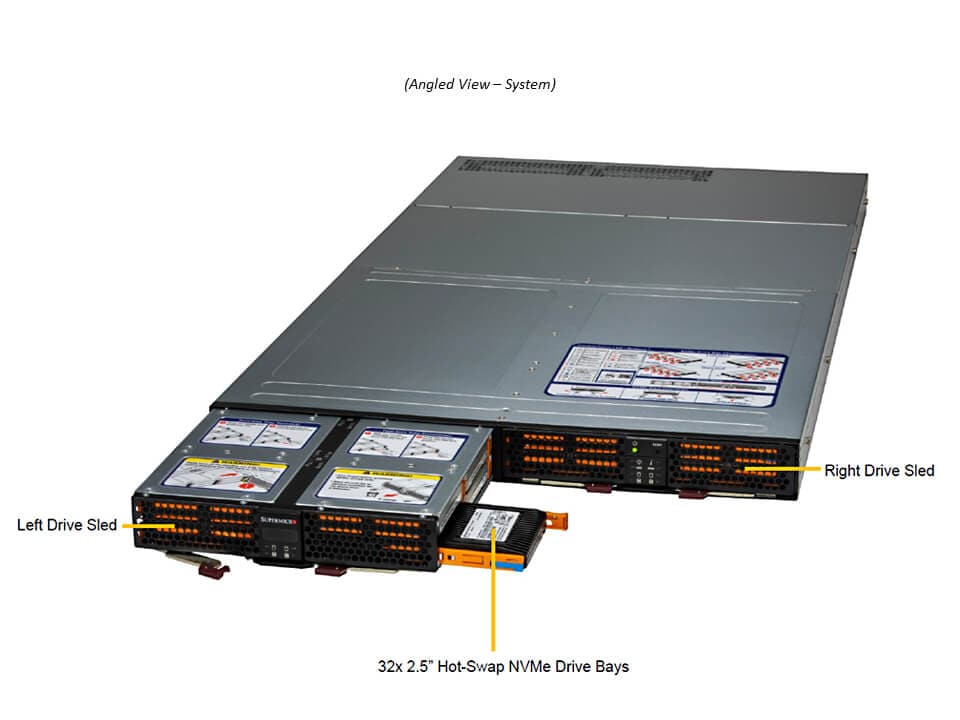

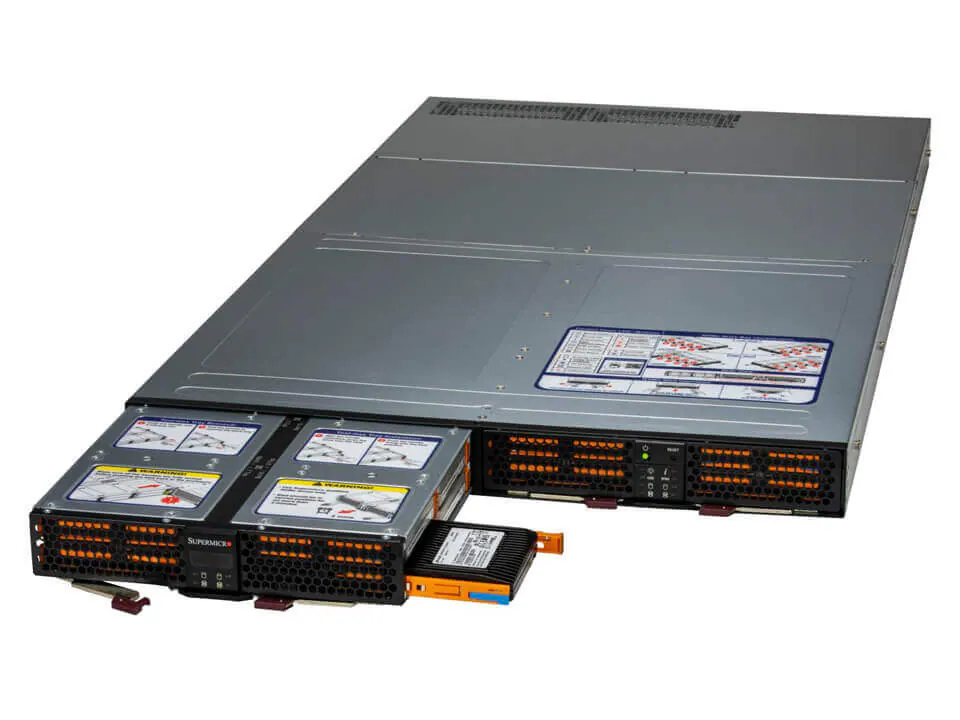

1U front-loading all-flash storage box with 32 hot-swap 2.5″ NVMe bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-136R-4MU32JBF

1U front-loading all-flash storage box with 32 hot-swap 2.5″ NVMe bays and PCIe 4.0

Key Features

  1. IPMI management with dedicated LAN
  2. 32x hot-swap U.2/U.3 NVMe drive bays
  3. 1000W Redundant Power Supplies
  4. 4 PCIe Gen4 rear IO ports2 PCIe Gen4 x16 slots
  5. Qualified SAS HBA / controller: AOC-SLG4-4X4T-O – JBOF, PCIe Gen 4 x16 NVMe retimer (see supported host systems below):SYS-120U-TNR, SYS-610U-TNR, SYS-220U-TNR, SYS-620U-TNR, SYS-220U-MTNRSYS-111C-NR, SYS-521C-NR, SSG-521E-E1CR24H, SSG-521E-E1CR24LAS -1024US-TRT, AS -1124US-TNRP, AS -2024US-TRT, AS -2124US-TNRPAS -1115HS-TNR, AS -2015HS-TNR, AS -2115HS-TNR

Specifications

Product SKUs
  • SuperServer SSG-136R-4MU32JBF
PCIe Switch Control Board
  • Super BPN-NVME4-136PL-J
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE with Realtek
Input / Output
LAN
  • 2 RJ45 1 GbE Dedicated BMC LAN ports
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • SuperServer SSG-136R-4MU32JBF
  • Super BPN-NVME4-136PL-J
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136TS-R000JNP-U2
Dimensions and Weight
Height
  • 1.71″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 31.95″ (811.7 mm)
Package
  • 8.375″ (H) x 24″ (W) x 48.5″ (D)
Weight
  • Gross Weight: 65 lbs (29.5 kg)
  • Net Weight: 49 lbs (22.2 kg)
Available Color
  • Silver

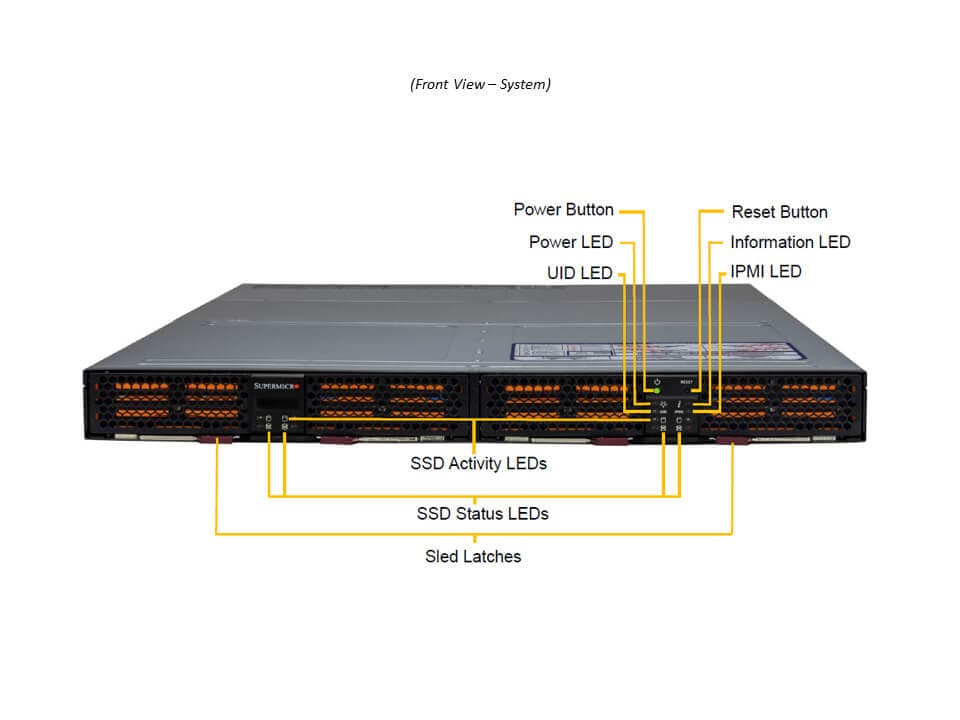

Front Panel
Buttons
  • Power On/Off
LED
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 32 bays32 front hot-swap 2.5″ NVMe drive bays
  • 32 front hot-swap 2.5″ NVMe drive bays
System Cooling
Fans
  • Up to 8 Heavy Duty 4cm Fan(s)
Power Supply
  • 2x 1000W 2x 1000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac)
12V SB
  • Max: 2.1A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 1000W 2x 1000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List
SKU: ssg-136r-4mu32jbf Categorii: , , ,
Product SKUs
  • SuperServer SSG-136R-4MU32JBF
PCIe Switch Control Board
  • Super BPN-NVME4-136PL-J
On-Board Devices
Network Connectivity
  • 2 RJ45 1GbE with Realtek
Input / Output
LAN
  • 2 RJ45 1 GbE Dedicated BMC LAN ports
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • SuperServer SSG-136R-4MU32JBF
  • Super BPN-NVME4-136PL-J
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136TS-R000JNP-U2
Dimensions and Weight
Height
  • 1.71″ (43.6 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 31.95″ (811.7 mm)
Package
  • 8.375″ (H) x 24″ (W) x 48.5″ (D)
Weight
  • Gross Weight: 65 lbs (29.5 kg)
  • Net Weight: 49 lbs (22.2 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LED
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 4.0 x16 FHHL slots
  • 2 PCIe 4.0 x16 FHHL slots
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 32 bays32 front hot-swap 2.5″ NVMe drive bays
  • 32 front hot-swap 2.5″ NVMe drive bays
System Cooling
Fans
  • Up to 8 Heavy Duty 4cm Fan(s)
Power Supply
  • 2x 1000W 2x 1000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac)
12V SB
  • Max: 2.1A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 1000W 2x 1000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List
