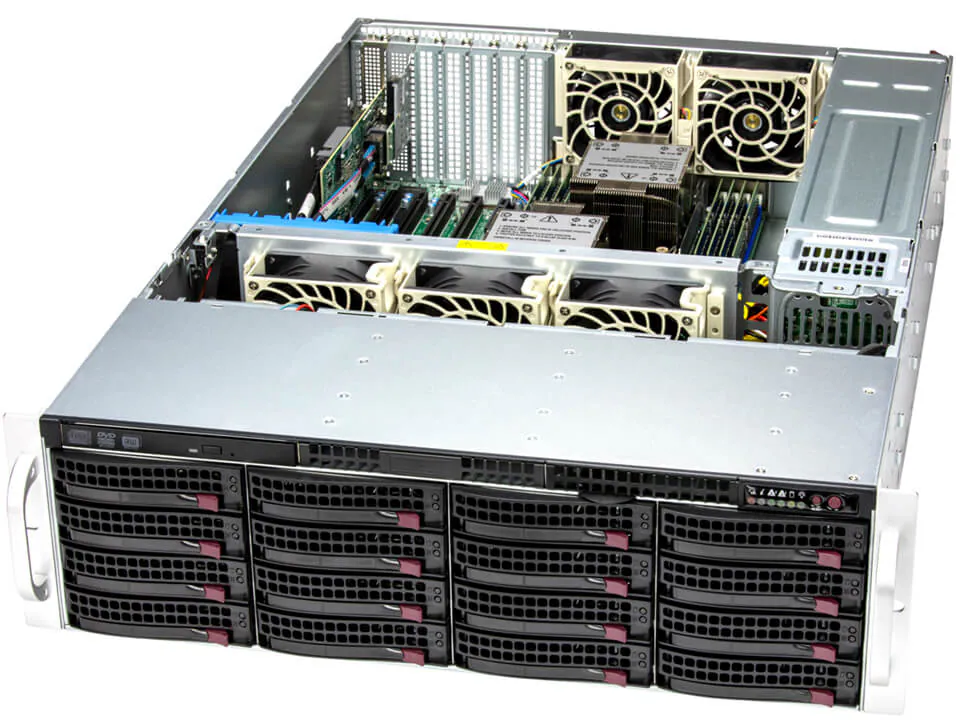

Supermicro SuperServer SSG-631E-E1CR16H
Supermicro SuperServer SSG-631E-E1CR16H - imagine 2
Supermicro SuperServer SSG-631E-E1CR16H - imagine 3
Supermicro SuperServer SSG-631E-E1CR16H - imagine 4
Supermicro SuperServer SSG-631E-E1CR16H - imagine 5
Supermicro SuperServer SSG-631E-E1CR16H - imagine 6
, , ,

Supermicro SuperServer SSG-631E-E1CR16H

Favorite
Compara

3U front-loading storage server with 16 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-631E-E1CR16H

3U front-loading storage server with 16 hot-swap 3.5″ SAS/SATA bays (SAS hardware RAID) and PCIe 5.0

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
  3. 2x 10 GbE onboard via Broadcom BCM574161x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  4. 2x 10 GbE onboard via Broadcom BCM57416
  5. 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  6. 16x 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear 2.5″ SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  7. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
  8. 1200W Redundant Power Supplies Titanium Level (96%)
  9. HW RAID support via Broadcom® 3908

Specifications

Product SKUs
  • SuperServer SSG-631E-E1CR16H

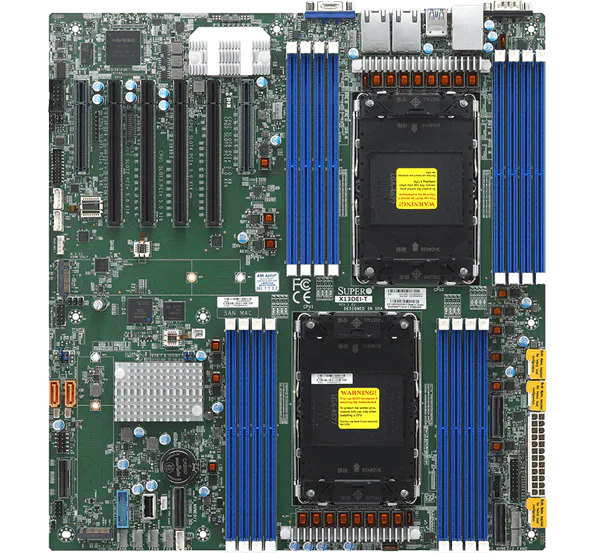

Motherboard
  • Super X13DEI-T
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports up to 270W TDP CPUs (Air Cooled)

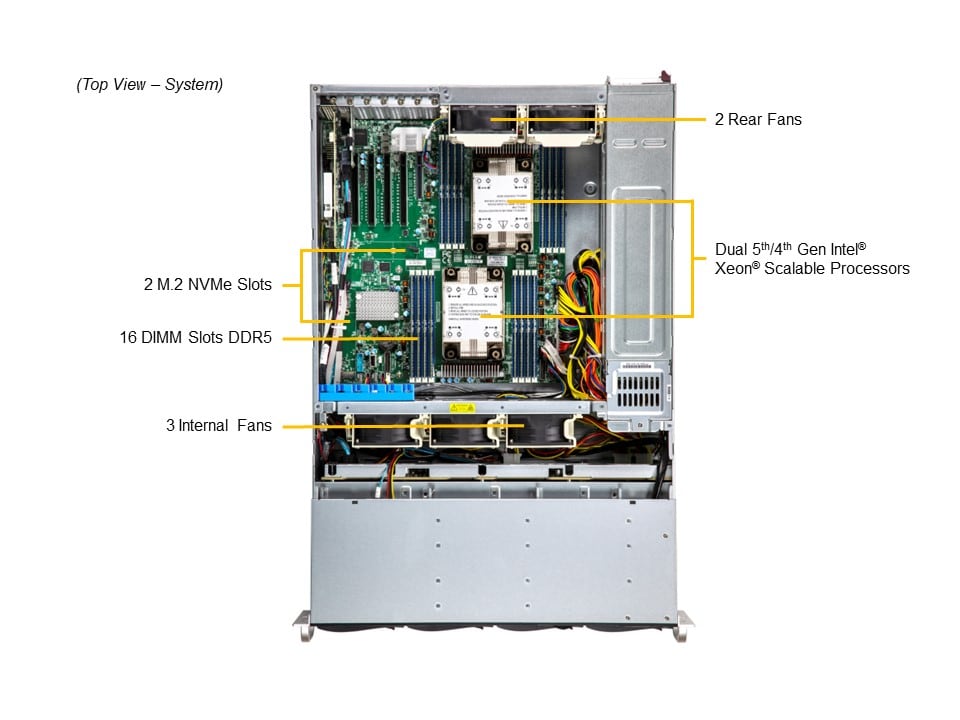

System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Broadcom® BCM57416

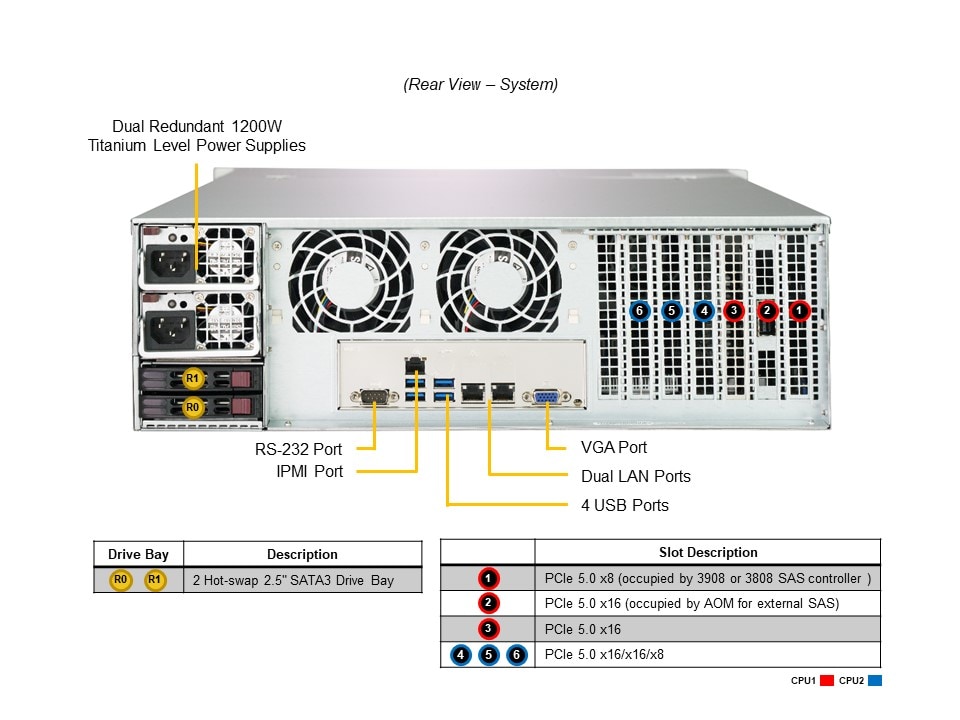

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-631E-E1CR16H
  • Super X13DEI-T
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-836BTS-R1K23BP2
Dimensions and Weight
Height
  • 5.2″
Width
  • 17.2″
Depth
  • 25.5″
Package
  • 13″ (H) x 27″ (W) x 35″ (D)
Weight
  • Gross Weight: 79 lbs (48 kg)
Available Color
  • Silver

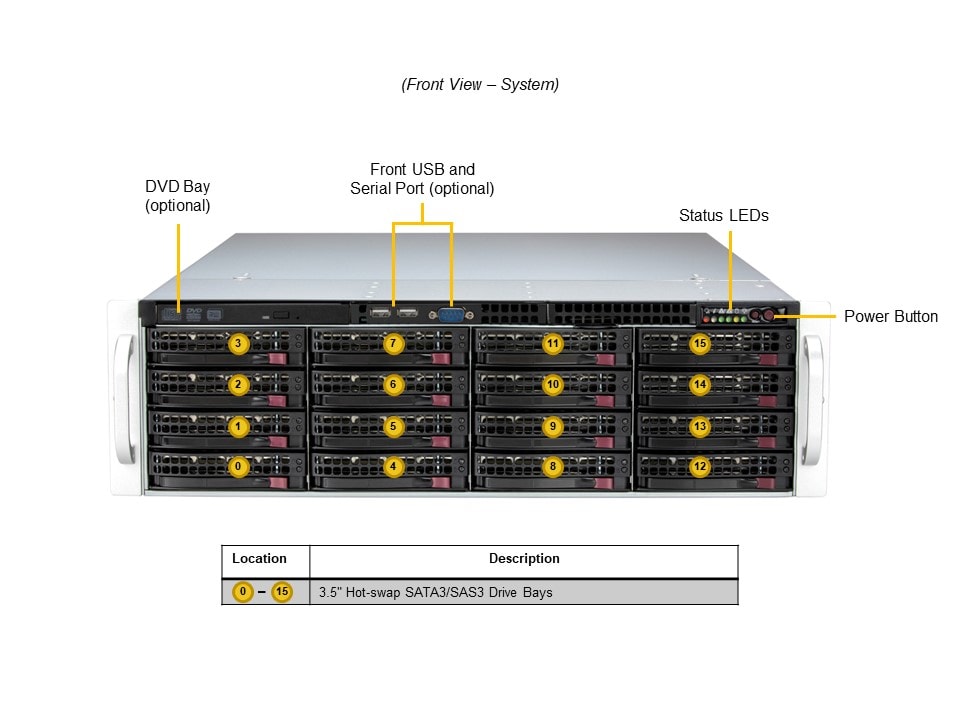

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x16 (in x16) FHHL slots 2 PCIe 5.0 x8 (in x8) FH/10.5″L slots
  • 4 PCIe 5.0 x16 (in x16) FHHL slots
  • 2 PCIe 5.0 x8 (in x8) FH/10.5″L slots

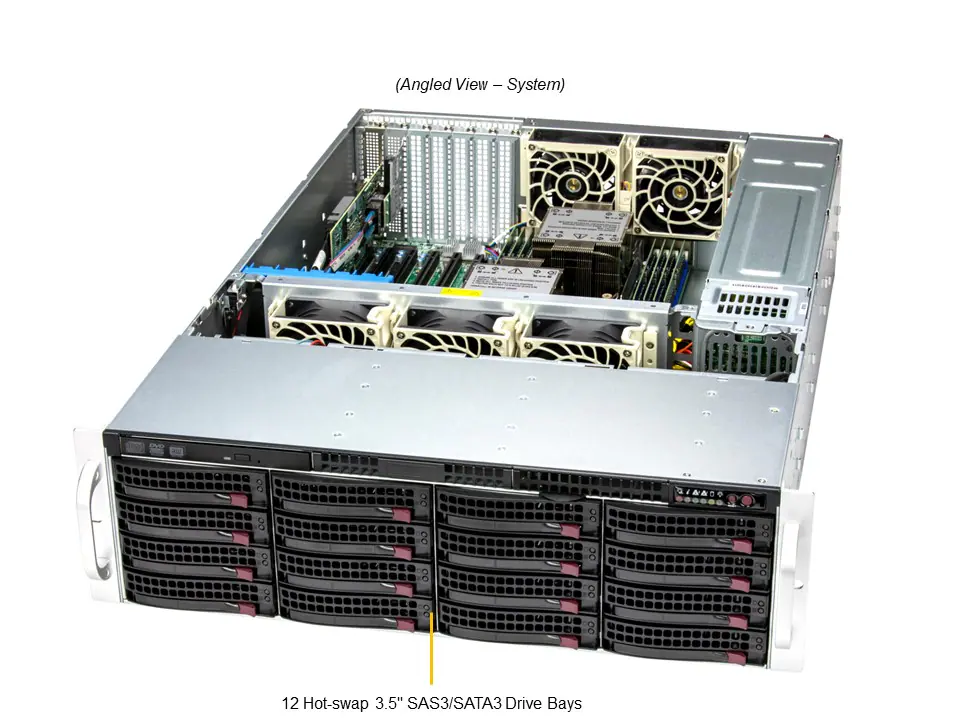

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bays16 front hot-swap 3.5″ SAS/SATA drive bays 2 rear hot-swap 2.5″ SATA drive bays
  • 16 front hot-swap 3.5″ SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ SATA drive bays
M.2
  • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • Up to 5 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
SKU: ssg-631e-e1cr16h Categorii: , , ,
