Supermicro SuperServer AS -531AW-TC

Favorite
Compara

UP workstation for AI, design, simulation and media

Pretul afisat contine TVA (21%).

SuperServer AS -531AW-TC

UP workstation for AI, design, simulation and media

Key Features

  1. AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series and Ryzen™ Threadripper™ 9000/7000 series up to 350W TDP ProcessorsSupports optional CPU closed-looped liquid cooling kitCPU and Memory Overclocking supported
  2. AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series and Ryzen™ Threadripper™ 9000/7000 series up to 350W TDP Processors
  3. Supports optional CPU closed-looped liquid cooling kit
  4. CPU and Memory Overclocking supported
  5. 4 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MHz Up to total 512GB
  6. 2 PCIe 5.0 x16 slots and 2 PCIe 5.0 x8 slots, 2 PCIe 4.0 x4 M.2 slots (RAID 0, 1) and 1 MCIO connector (PCIe 4.0 x8) to support 2 NVMe PCIe drives
  7. 6 internal fixed 2.5″ SATA drive bays and 2 internal fixed 3.5″ SATA drive bays
  8. 1 Dedicated LAN for IPMIDual 10Gb LAN with Broadcom BCM57416
  9. 1 Dedicated LAN for IPMI
  10. Dual 10Gb LAN with Broadcom BCM57416
  11. 1000W, 1300W and 2000W Power Supply Options

Specifications

Product SKUs
  • A+ Workstation AS -531AW-TC

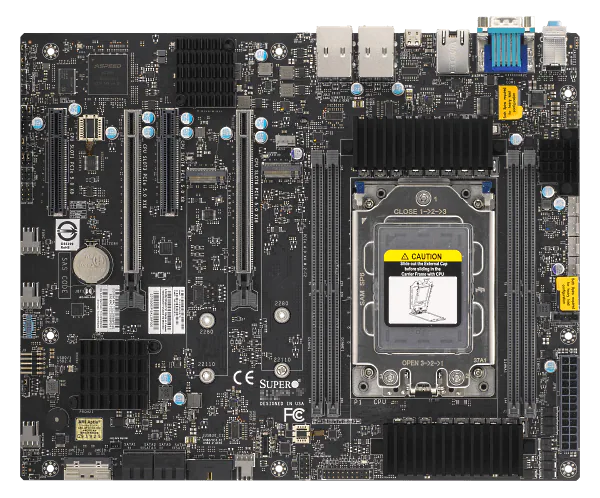

Motherboard
  • Super H13SRA-TF

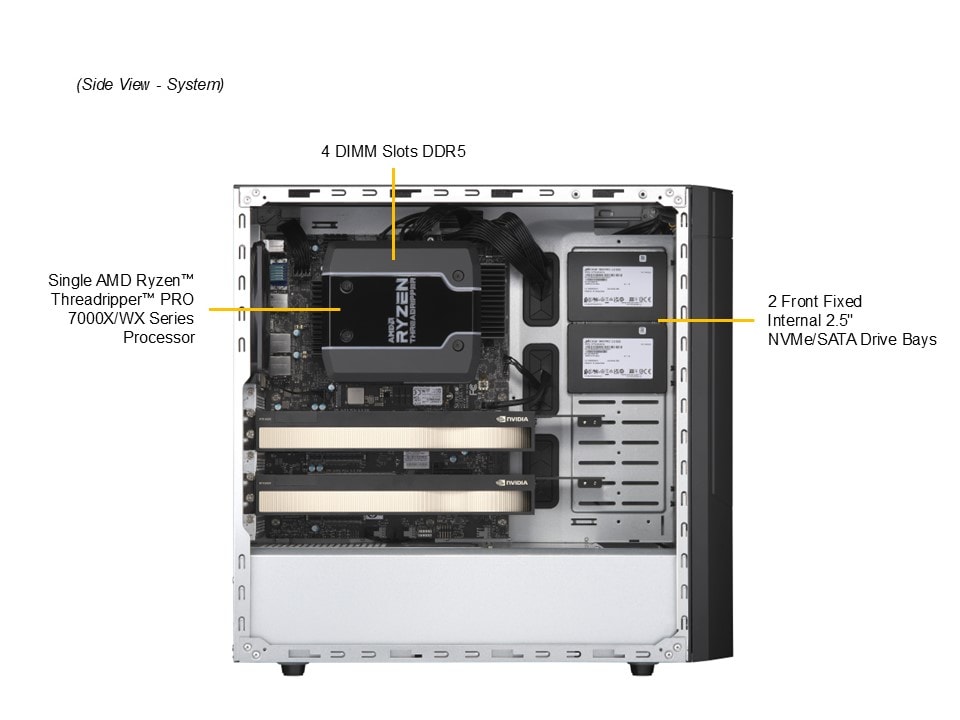

Processor
CPU
  • Single Socket sTR5 (LGA-4844)
  • AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
Core Count
  • Up to 96C/192T; Up to 384MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 1 quad-width or 2 triple-width or 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation
  • NVIDIA: GeForce RTX 5070, GeForce RTX 5080, GeForce RTX 5090
  • AMD PCIe: Radeon™ AI PRO R9700
System Memory
Memory
  • Slot Count: 4 DIMM slots/4 Channels
  • Max Memory (1DPC): Up to 512GB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GbE with Broadcom® BCM57416
  • 1 RJ45 1GbE with ASPEED AST2600
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

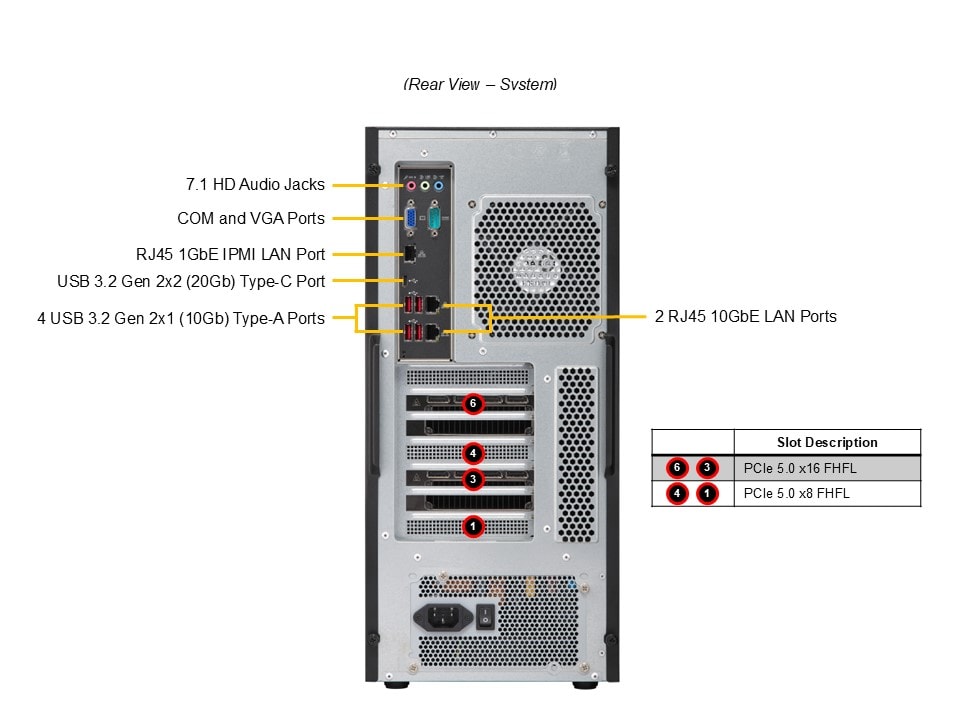

Input / Output
LAN
  • 2 RJ45 10 GBASE-T LAN ports (Broadcom® BCM57416)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
USB
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 3.2 Gen2 Type-A ports(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Rear)
  • 1 USB 3.2 Gen2 Type-C port(Front)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • SuperServer Automation Assistant (SAA) New!
  • IPMICFG
  • SMCIPMITool
  • IPMIView
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
FAN
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic
Voltage
  • Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
  • A+ Workstation AS -531AW-TC
  • Super H13SRA-TF
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-GS3A-000NBP

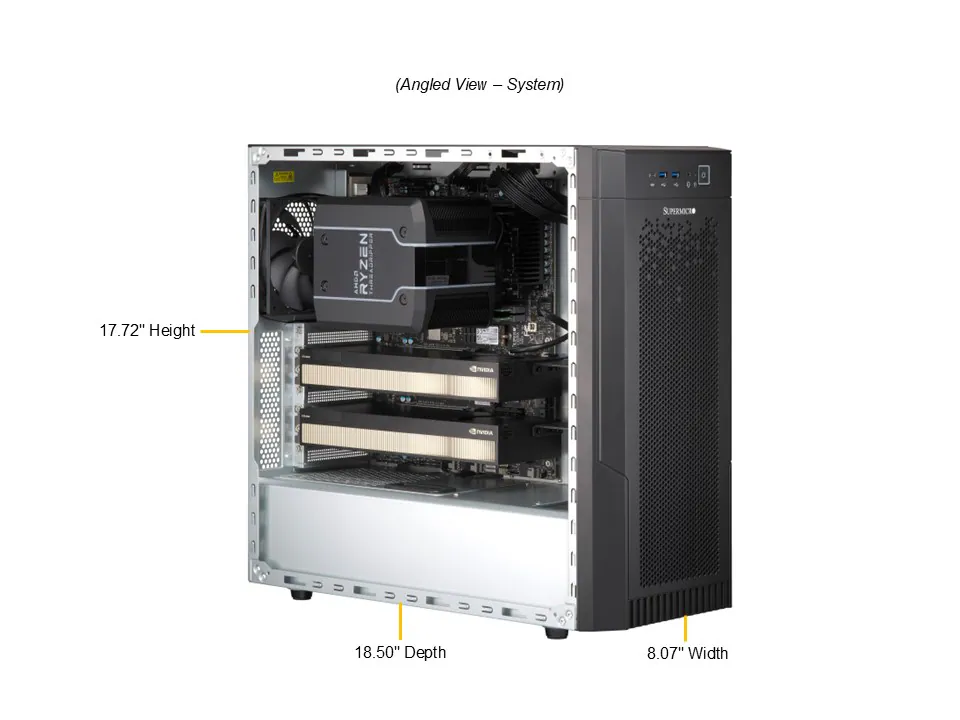

Dimensions and Weight
Height
  • 17.72″ (450 mm)
Width
  • 8.07″ (205 mm)
Depth
  • 18.5″ (470 mm)
Package
  • 24.29″ (H) x 12.8″ (W) x 23.23″ (D)
Weight
  • Gross Weight: 19.2 lbs (8.7 kg)
  • Net Weight: 14.1 lbs (6.4 kg)
Available Color
  • Black

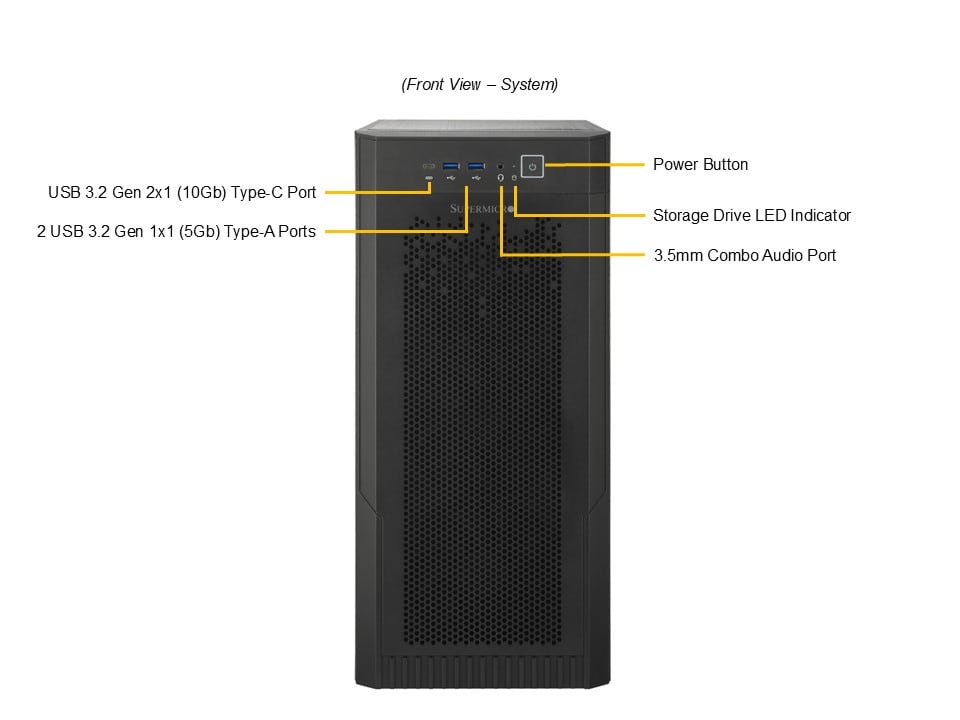

Front Panel
Buttons
  • Power On/Off
LED
  • HDD activity
  • Power status LED
Port
  • Audio Jack-Combo microphone input / audio output port
  • USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G)
  • USB Type-C-USB 3.2 Gen 2X2 port (20G)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x8 (in x8) FHFL slots
  • 2 PCIe 5.0 x16 (in x16) FHFL slots
  • 2 PCIe 5.0 x8 (in x8) FHFL slots
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration

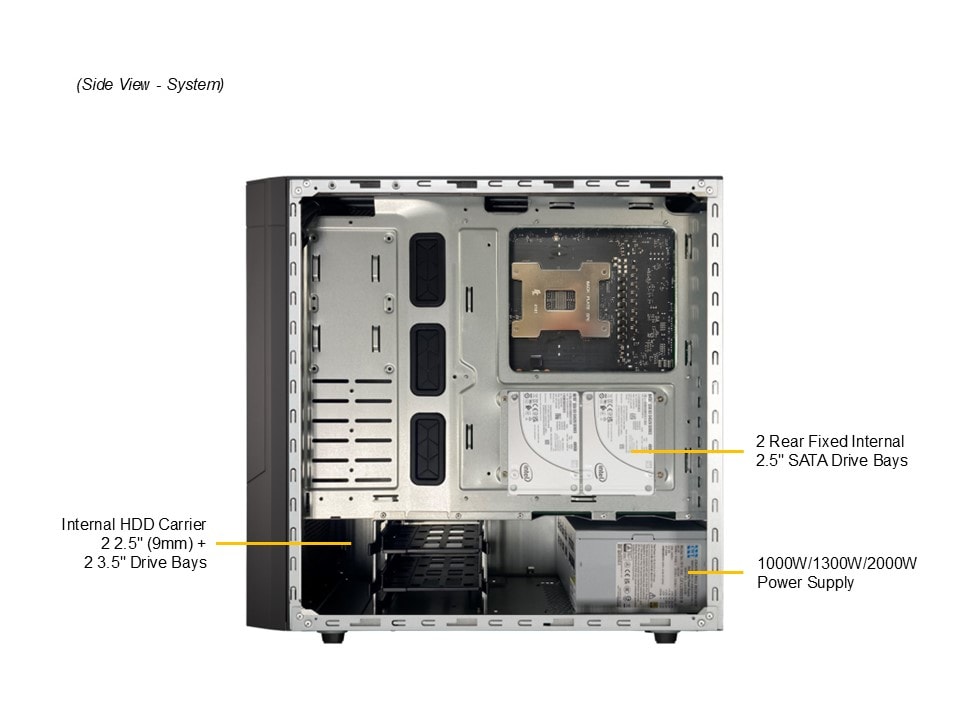

  • Default: Total 8 bays2 internal fixed 3.5″ SATA* drive bays 6 internal fixed 2.5″ SATA* drive bays
  • 2 internal fixed 3.5″ SATA* drive bays
  • 6 internal fixed 2.5″ SATA* drive bays
  • Option A: Total 8 bays2 internal fixed 3.5″ SATA drive bays 4 internal fixed 2.5″ SATA drive bays 2 internal fixed 2.5″ PCIe 4.0 NVMe* drive bays
  • 2 internal fixed 3.5″ SATA drive bays
  • 4 internal fixed 2.5″ SATA drive bays
  • 2 internal fixed 2.5″ PCIe 4.0 NVMe* drive bays
  • (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
  • View M.2 Options
System Cooling
Fans
  • Up to 1 Rear Exhaust Fan 120mm Fan(s)
  • Up to 3 Front Intake 120mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 1x 1000W 1x 2000W 1x 1300W 1x 1000W 1x 1000W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input1000W: 100-240Vac / 47-63Hz +12VMax: 83.3A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Gold Level 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX 1x 1300W 1x 1300W Platinum Level (92%) power supply Dimension (WxHxL)86 x 160 x 150 mm Input1300W: 100-240Vac / 50-60Hz +12VMax: 108.33A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output TypeBackplanes (connector) Certification Platinum Level
Dimension (WxHxL)
  • 150 x 86 x 140 mm
Input
  • 1000W: 100-240Vac / 47-63Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Gold Level
Dimension (WxHxL)
  • 150 x 86 x 200 mm
Input
  • 100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Dimension (WxHxL)
  • 86 x 160 x 150 mm
Input
  • 1300W: 100-240Vac / 50-60Hz
+12V
  • Max: 108.33A / Min: 0A (100Vac-240Vac)
Output Type
  • Backplanes (connector)
Certification
  • Platinum Level
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 30°C (50°F to 86°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1000W 1x 2000W 1x 1300W 1x 1000W 1x 1000W Gold Level (90%) power supply Dimension (WxHxL)150 x 86 x 140 mm Input1000W: 100-240Vac / 47-63Hz +12VMax: 83.3A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output Type24pin ATX Certification Gold Level 1x 2000W 1x 2000W Platinum Level (92%) power supply Dimension (WxHxL)150 x 86 x 200 mm Input100-240Vac 1200W: 100-115Vac / 50-60Hz 1500W: 115-200Vac / 50-60Hz 2000W: 200-264Vac / 50-60Hz +12VMax: 100A / Min: 0.1A (100Vac-115Vac)Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))Max: 125A / Min: 0.1A (115Vac-120Vac)Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))Max: 166.6A / Min: 0.1A (200Vac-264Vac) 5V SBMax: 4A / Min: 0A Output Type24pin ATX 1x 1300W 1x 1300W Platinum Level (92%) power supply Dimension (WxHxL)86 x 160 x 150 mm Input1300W: 100-240Vac / 50-60Hz +12VMax: 108.33A / Min: 0A (100Vac-240Vac) 5V SBMax: 3A / Min: 0A Output TypeBackplanes (connector) Certification Platinum Level
Optional Parts List
