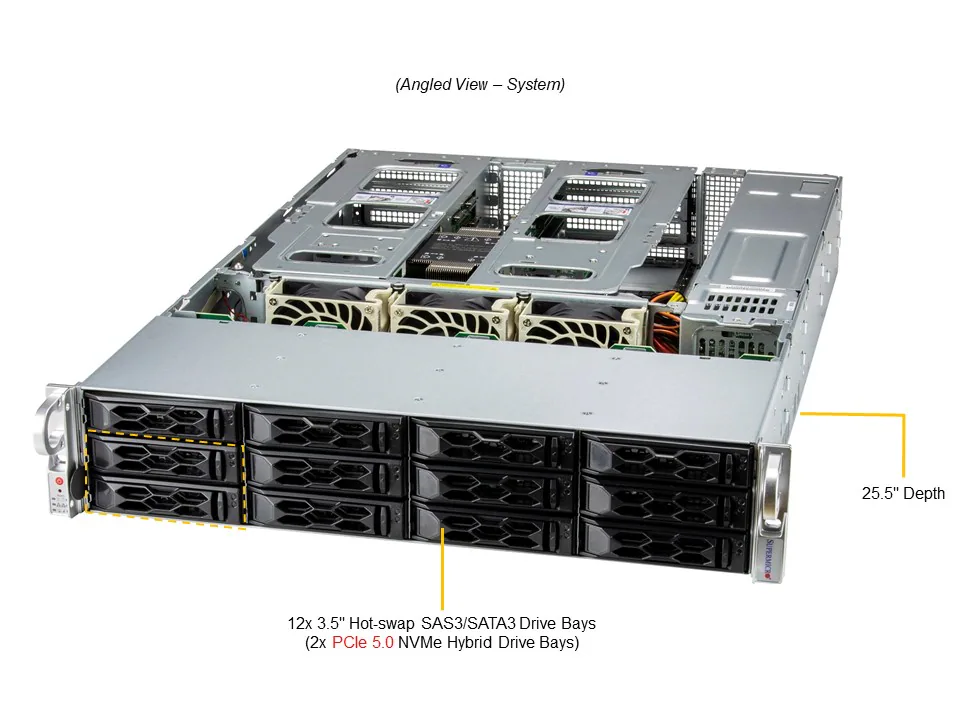

2U UP CloudDC with 12 hot-swap 3.5″ SAS/SATA (2 NVMe hybrid) bays and 6 PCIe 5.0 slots + 1 PCIe 5.0 AIOM slot

Pretul afisat contine TVA (21%).

SuperServer SYS-521C-NR

2U UP CloudDC with 12 hot-swap 3.5″ SAS/SATA (2 NVMe hybrid) bays and 6 PCIe 5.0 slots + 1 PCIe 5.0 AIOM slot

Key Features

  1. Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 350W TDP
  2. Intel® C741 Chipset
  3. 16 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz
  4. Single AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  5. 12 Front hot-swap 3.5″ SATA3 drive bays (Optional 2 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
  6. Redundant Titanium 1200W Power Supplies

Specifications

Product SKUs
  • SuperServer SYS-521C-NR

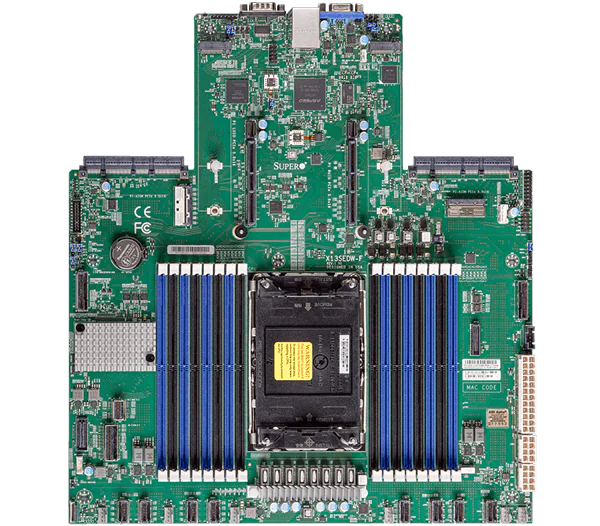

Motherboard
  • Super X13SEDW-F
Processor
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, H100 NVL, A16, A2, A30, A40, L4, L40, L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A6000, T1000
  • NVIDIA: RTX A400
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-521C-NR
  • Super X13SEDW-F
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)

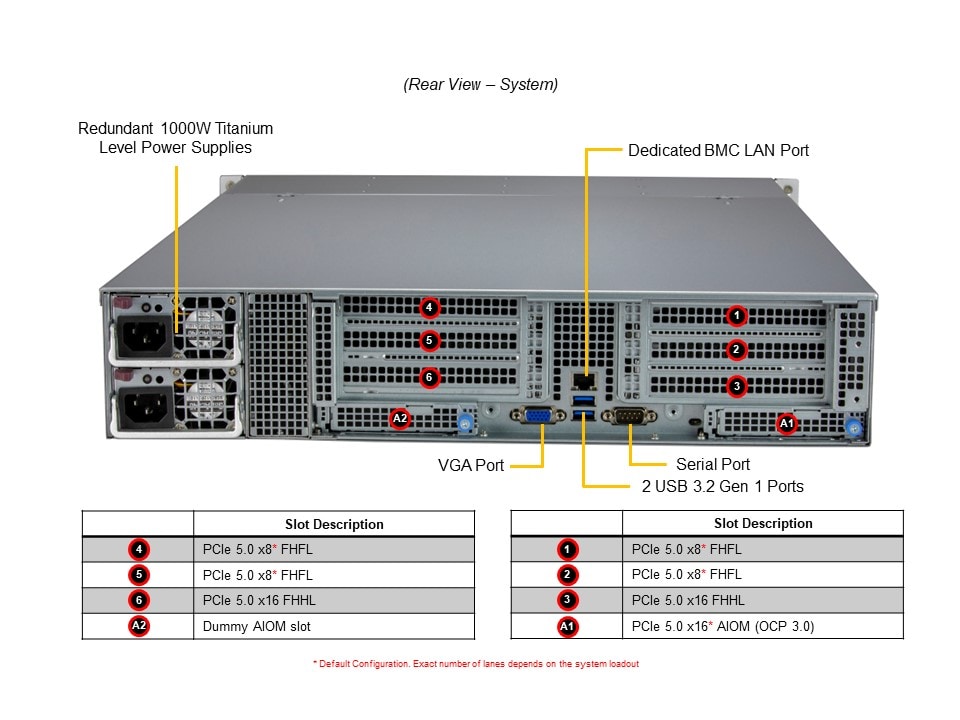

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default4 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 4 PCIe 5.0 x8 FHFL slots
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A4 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 4 PCIe 5.0 x8 FHFL slots
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • Option B2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)

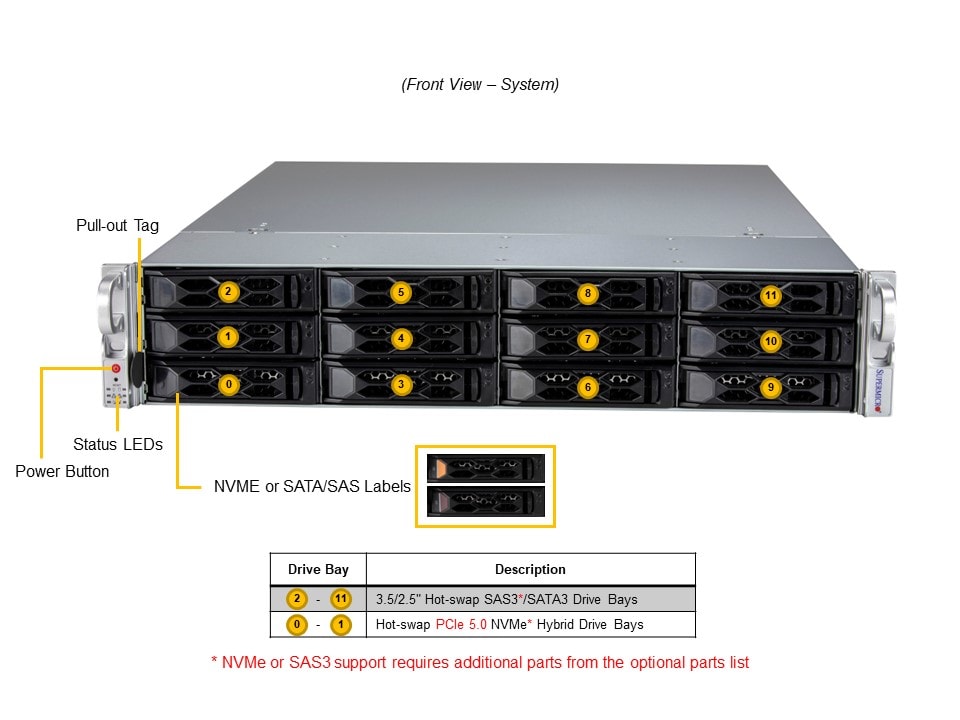

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 3.5″ SAS*/SATA drive bays
  • 12 front hot-swap 3.5″ SAS*/SATA drive bays
  • Option A: Total 12 bays2 front hot-swap 3.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays 10 front hot-swap 3.5″ SAS*/SATA drive bays
  • 2 front hot-swap 3.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • 10 front hot-swap 3.5″ SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options

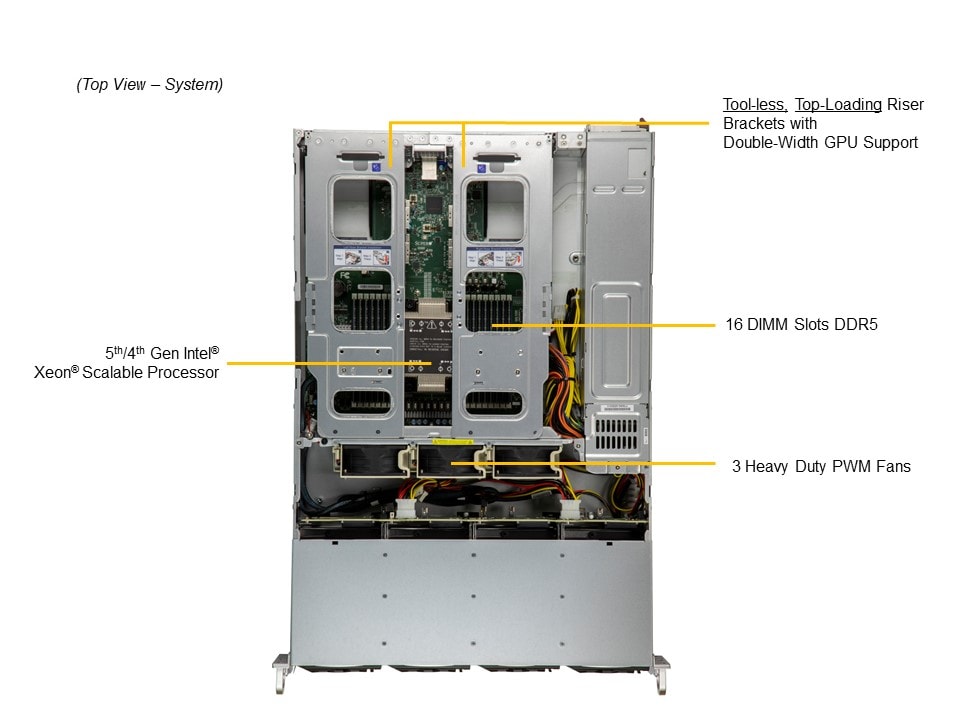

System Cooling
Fans
  • Up to 3 heavy duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
