Supermicro SuperServer SYS-F620P3-RTBN

Favorite

Compara

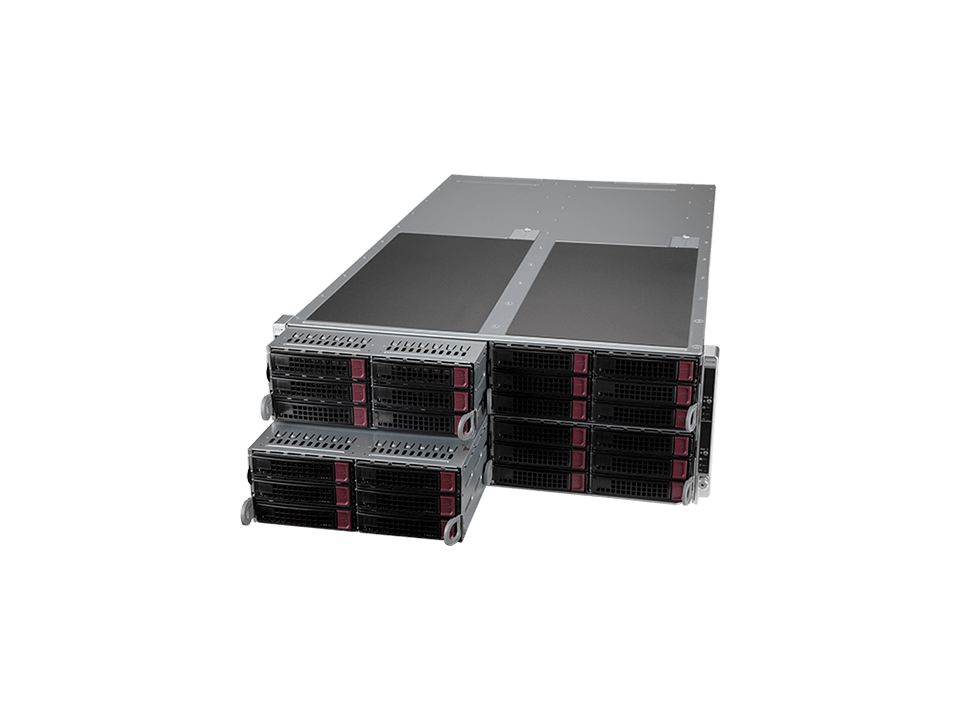

4U 4-node FatTwin with 8 3.5″ SAS/SATA (optional 6 NVMe) per node

Pretul afisat contine TVA (21%).

SuperServer SYS-F620P3-RTBN

4U 4-node FatTwin with 8 3.5″ SAS/SATA (optional 6 NVMe) per node

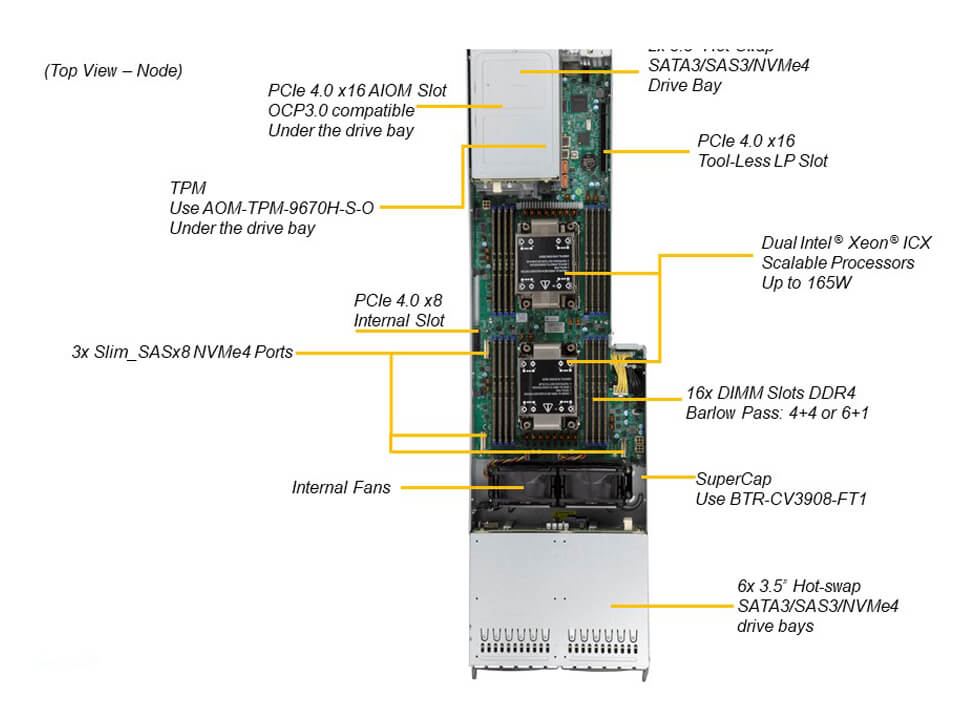

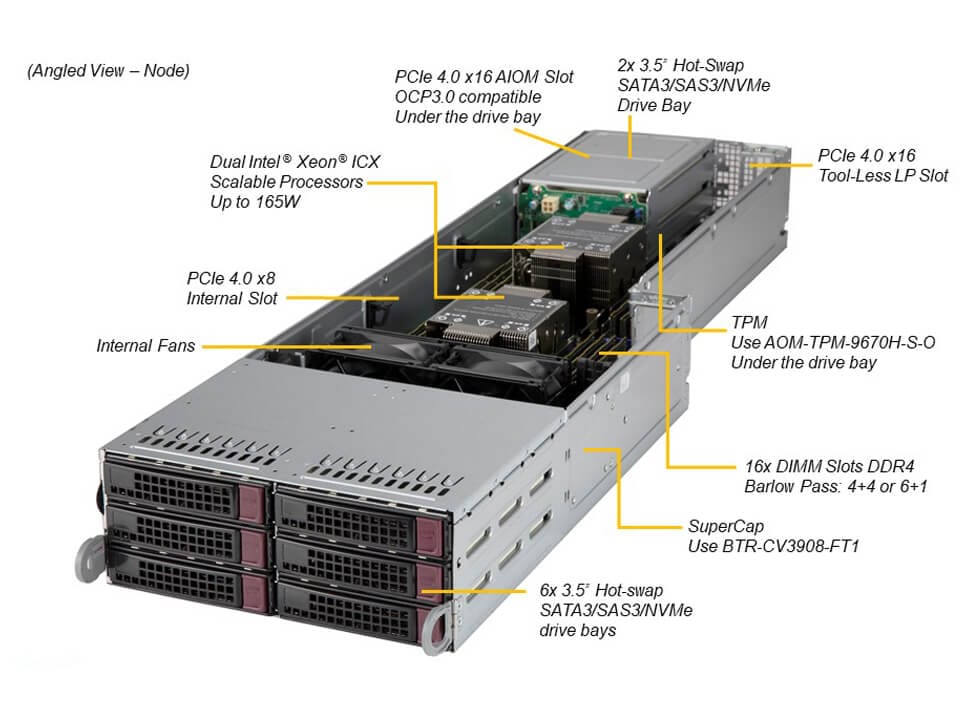

Key Features

Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
Two M.2 Internal Drives
NVMe/SATA/SAS options
AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)
Front access node for better serviceability; 8x 3.5” hot-swap HDDs per nodeUp to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives

Specifications

Product SKUs
SuperServer SYS-F620P3-RTBN

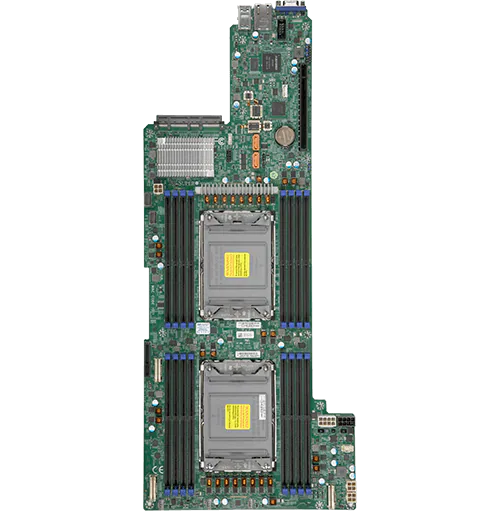

Motherboard
Super X12DPFR-AN6
Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count	Up to 1 double-width GPU
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB non-ECC Supports Intel® Optane™ persistent memory 200 series
On-Board Devices (per Node)
Network Connectivity	1 RJ45 1GbE

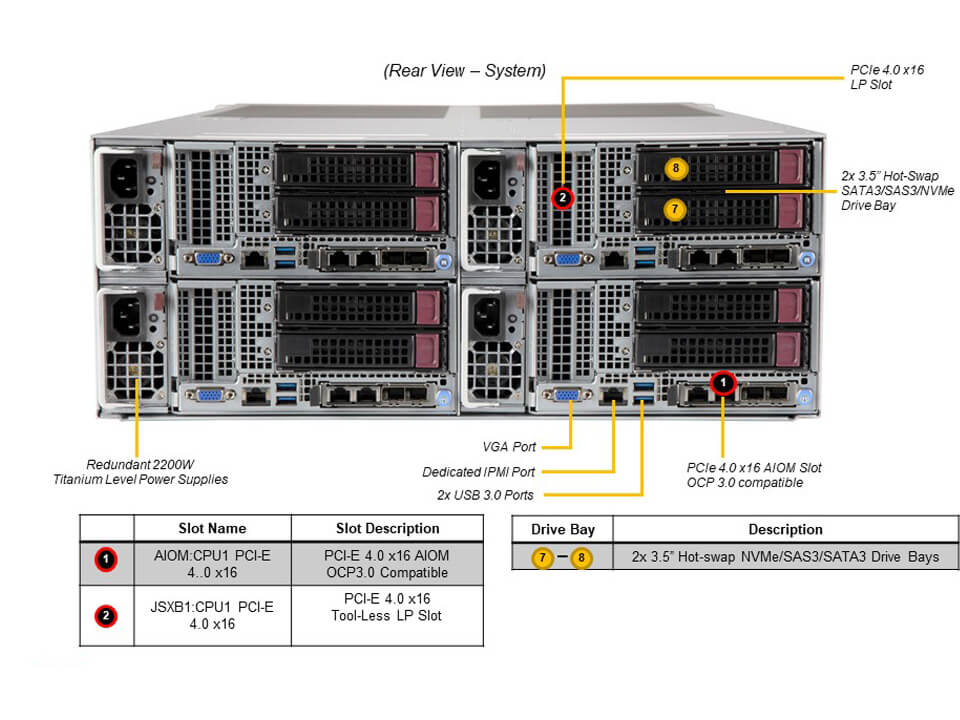

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-F620P3-RTBN
Super X12DPFR-AN6
Chassis
Form Factor	4U Rackmount
Model	CSE-F424AS3-R2K20BP
Dimensions and Weight
Height	6.96″ (177 mm)
Width	17.63″ (448 mm)
Depth	29″ (737 mm)
Package	15″ (H) x 28.3″ (W) x 42.4″ (D)
Weight	Gross Weight: 200 lbs (90.71 kg) Net Weight: 150 lbs (68.04 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)

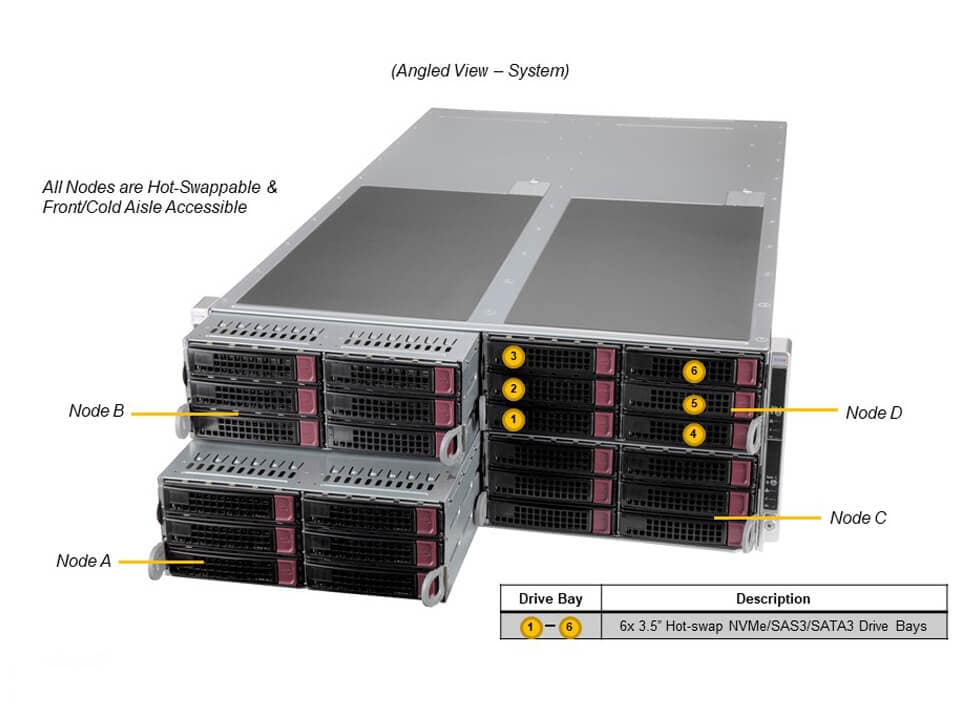

Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 8 bays6 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 3.5″ NVMe/SAS/SATA drive bays 6 front hot-swap 3.5″ NVMe/SAS/SATA drive bays 2 rear hot-swap 3.5″ NVMe/SAS/SATA drive bays
System Cooling
Fans	Up to 2x 8cm Fan(s)
Air Shroud	1 Air Shroud
Power Supply
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Total Output Power	(for UL/cUL use only)(for CCC only)
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for UL/cUL use only)(for CCC only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
